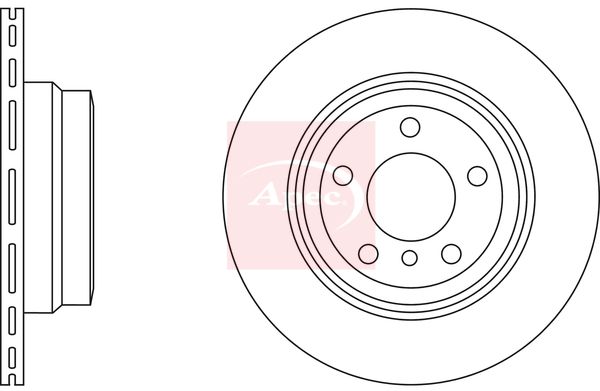

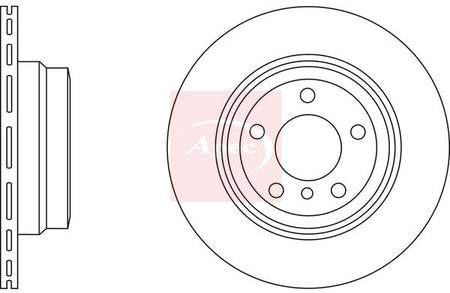

Apec DSK2601 Brake Disc - 1
Apec DSK2601 Brake Disc - 1
APEC

Apec DSK2601 Brake Disc

SKU: DSK2601
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£54.35 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
X5 (E70)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 245 HP 04/2010 - 07/2013
xDrive 40 d 2993 CCM 306 HP 09/2010 - 06/2013
xDrive 35 i 2979 CCM 306 HP 04/2010 - 07/2013
3.0 si 2996 CCM 272 HP 10/2006 - 09/2008
3.0 d 2993 CCM 235 HP 12/2006 - 09/2008
xDrive 30 i 2996 CCM 272 HP 10/2008 - 03/2010
xDrive 30 d 2993 CCM 235 HP 10/2008 - 03/2010
3.0 3.0d 2993 CCM 211 HP 02/2007 - 09/2008
xDrive 35 i 2979 CCM 320 HP 02/2012 - 06/2013
X5 (F15, F85)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 258 HP 08/2013 - 07/2018
sDrive 25 d 1995 CCM 218 HP 12/2013 - 07/2015
xDrive 25 d 1995 CCM 218 HP 12/2013 - 07/2015
xDrive 30 d 2993 CCM 277 HP 08/2013 - 07/2018
sDrive 25 d 1995 CCM 231 HP 08/2015 - 07/2018
xDrive 25 d 1995 CCM 231 HP 08/2015 - 07/2018
xDrive 40e 1997 CCM 313 HP 08/2015 - 07/2018
xDrive 28 i 1997 CCM 245 HP 06/2015 - 07/2018
xDrive 25 d 2993 CCM 218 HP 04/2014 - 07/2018
X6 (E71, E72)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 245 HP 04/2010 - 07/2014
xDrive 40 d 2993 CCM 306 HP 07/2009 - 06/2014
xDrive 30 d 2993 CCM 211 HP 04/2010 - 07/2014
xDrive 35 i 2979 CCM 306 HP 01/2008 - 07/2014
xDrive 30 d 2993 CCM 235 HP 04/2008 - 03/2010
xDrive 35 d 2993 CCM 286 HP 01/2008 - 03/2010
xDrive 35 i 2979 CCM 320 HP 08/2012 - 06/2014
X6 (F16, F86)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 258 HP 08/2014 - 07/2019
xDrive 30 d 2993 CCM 277 HP 08/2014 - 07/2019

The Apec DSK2601 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 320 mm outer diameter, 20 mm brake disc thickness, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 320
Brake Disc Thickness [mm] : 20
Height [mm] : 79
Bolt Hole Circle Ø [mm] : 120
Centering Diameter [mm] : 75
Number of Holes : 5
Machining : High-carbon
  • Vendor APEC
  • SKU DSK2601
  • Barcode 5028906090029
  • BMW : 34216771970 34216793247 34216868940 34216886479
  • APEC : SDK6552
  • BLUE PRINT : ADB114304
  • BORG & BECK : BBD4726
  • BOSCH : 0 986 479 442
  • BREMBO : 09.9925.11
  • BREMBO : 09.9925.1S
  • BREMBO : 09.9925.1X
  • DELPHI : BG4168
  • Fahren : FBD6552
  • FEBI BILSTEIN : 36386
  • HELLA : 8DD 355 114-001
  • HELLA : 8DD 355 128-761
  • MEYLE : 315 523 0024/PD
  • MINTEX : MDC2186
  • NAPA : NBD5335
  • National : NBD1527
  • SKF : VKBD 90442 V1
  • TEXTAR : 92161103
  • TRW : DF4854S
  • VALEO : 197179
  • VALEO : 672507
