APEC

Apec DSK2615 Brake Disc

SKU: DSK2615

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£64.15 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT

LAGUNA II (BG0/1_)

Description	Cylinder Capacity	Horse Power	Year
3.0 V6 24V (BG01, BG02, BG0D, BG0Y)	2946 CCM	207 HP	03/2001 - 08/2007
2.2 dCi (BG0F)	2188 CCM	150 HP	10/2001 - 08/2006
2.0 16V Turbo (BG0S, BG1L, BG1M)	1998 CCM	163 HP	01/2003 - 03/2005
2.0 16V (BG03, BG0Z, BG0T, BG1Y)	1998 CCM	170 HP	01/2005 - 09/2007
2.0 16V (BG1Y)	1998 CCM	204 HP	01/2005 - 09/2007

LAGUNA II Sport Tourer (KG0/1_)

Description	Cylinder Capacity	Horse Power	Year
3.0 V6 24V (KG0D, KG01)	2946 CCM	207 HP	03/2001 - 12/2007
2.2 dCi (KG0F)	2188 CCM	150 HP	10/2001 - 08/2006
2.0 16V Turbo (KG0S, KG1L, KG03)	1998 CCM	163 HP	01/2003 - 08/2005

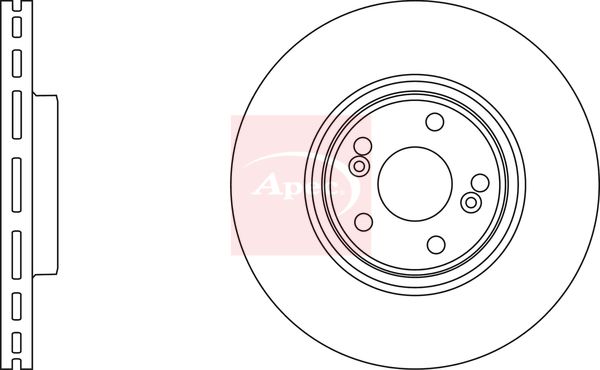

The Apec DSK2615 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 308 mm outer diameter, 28 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 308

Brake Disc Thickness [mm] : 28

Height [mm] : 47

Bolt Hole Circle Ø [mm] : 108

Wheel Bolt Bore Diameter [mm] : 13

Centering Diameter [mm] : 61

Number of Holes : 5

BLUE PRINT : ADR164334
BORG & BECK : BBD4438
BORG & BECK : BBD5928S
BOSCH : 0 986 479 198
DELPHI : BG4167
HELLA : 8DD 355 113-741
MINTEX : MDC1774
National : NBD1347
TEXTAR : 92157700
TRW : DF4259S
VALEO : 186717
VALEO : 197676
VALEO : 673322

Apec DSK2615 Brake Disc
