APEC

Apec DSK2639 Brake Disc

SKU: DSK2639

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£30.43 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CHRYSLER

SEBRING (JS)

Description	Cylinder Capacity	Horse Power	Year
2.4 VVT	2360 CCM	170 HP	07/2007 - 12/2010
2.0 VVT	1998 CCM	156 HP	07/2007 - 12/2010
2.0 CRD	1968 CCM	140 HP	07/2007 - 12/2010

SEBRING Convertible (JS)

Description	Cylinder Capacity	Horse Power	Year
2.7 VVT	2736 CCM	192 HP	07/2007 - 12/2010
2.0 CRD	1968 CCM	140 HP	07/2007 - 12/2010
2.7	2736 CCM	186 HP	07/2007 - 12/2010

DODGE

AVENGER

Description	Cylinder Capacity	Horse Power	Year
2.0	1998 CCM	156 HP	06/2007 - 12/2011
2.0 CRD	1968 CCM	140 HP	06/2007 - 12/2011
2.4	2360 CCM	170 HP	06/2007 - 12/2014
2.4	2360 CCM	175 HP	06/2007 - 12/2014

CALIBER

Description	Cylinder Capacity	Horse Power	Year
1.8	1798 CCM	150 HP	06/2006 - 10/2010
2.0	1998 CCM	156 HP	From 06/2006
2.0 CRD	1968 CCM	140 HP	From 06/2006
2.0 CRD	1968 CCM	136 HP	06/2006 - 11/2011
2.0 CRD	1968 CCM	120 HP	06/2006 - 11/2011

MITSUBISHI

ASX (GA_W_)

Description	Cylinder Capacity	Horse Power	Year
1.8 DI-D (GA6W)	1798 CCM	116 HP	From 06/2010
1.8 (GA3W)	1798 CCM	139 HP	From 02/2010
1.8 DI-D 4WD (GA6W)	1798 CCM	116 HP	From 06/2010
2.0 MIVEC (GA2W)	1998 CCM	150 HP	From 06/2010
2.0 MIVEC 4WD	1998 CCM	150 HP	From 06/2010
1.6 MIVEC (GA1W)	1590 CCM	116 HP	From 05/2010
1.6 MIVEC (GA1W)	1590 CCM	117 HP	From 06/2010
1.8 DI-D (GA6W)	1798 CCM	150 HP	From 06/2010
1.8 DI-D 4WD (GA6W)	1798 CCM	150 HP	From 06/2010

ASX Van (GA_W_)

Description	Cylinder Capacity	Horse Power	Year
1.8 DI-D 4WD	1798 CCM	150 HP	From 06/2010

OUTLANDER II (CW_W)

Description	Cylinder Capacity	Horse Power	Year
2.4 Flex 4WD	2360 CCM	170 HP	09/2007 - 11/2012
2.4 4WD (CW5W)	2360 CCM	170 HP	09/2007 - 11/2012
2.4 (CW5W)	2360 CCM	170 HP	11/2006 - 11/2012

OUTLANDER II Van (CW_W)

Description	Cylinder Capacity	Horse Power	Year
Di-D 4WD (CW1W)	2268 CCM	177 HP	09/2010 - 12/2012

JEEP

COMPASS (MK49)

Description	Cylinder Capacity	Horse Power	Year
2.2 CRD 4x4	2143 CCM	163 HP	From 12/2010
2.0	1998 CCM	156 HP	From 05/2011
2.2 CRD	2143 CCM	136 HP	From 05/2011
2.4 4x4	2360 CCM	170 HP	From 09/2006
2.0 CRD 4x4	1968 CCM	140 HP	From 09/2006
2.4	2360 CCM	170 HP	From 08/2006
2.0 CRD	1968 CCM	140 HP	From 08/2006
2.0 CRD 4x4	1968 CCM	120 HP	From 02/2007

PATRIOT (MK74)

Description	Cylinder Capacity	Horse Power	Year
2.2 CRD 4x4	2143 CCM	163 HP	01/2011 - 12/2017
2.4 4x4	2360 CCM	170 HP	01/2008 - 12/2017
2.0 CRD 4x4	1968 CCM	140 HP	02/2007 - 12/2017

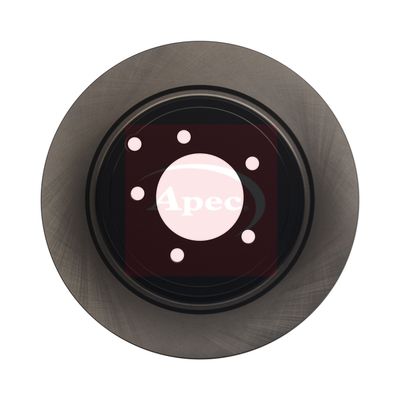

The Apec DSK2639 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 302 mm outer diameter, 10 mm brake disc thickness, and 80 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : solid

Outer Diameter [mm] : 302

Brake Disc Thickness [mm] : 10

Height [mm] : 60

Bolt Hole Circle Ø [mm] : 114

Centering Diameter [mm] : 80

Number of Holes : 5

Test Mark : 90R-02C01275/30201

APEC : SDK6573
BLUE PRINT : ADC443125
BLUE PRINT : ADP154333
BORG & BECK : BBD4820
BORG & BECK : BBD5255
BOSCH : 0 986 479 318
BOSCH : 0 986 479 R07
DELPHI : BG4169
Fahren : FBD6573
FEBI BILSTEIN : 108491
FEBI BILSTEIN : 108528
FEBI BILSTEIN : 44056
HELLA : 8DD 355 115-491
MEYLE : 32-15 523 0020/PD
MINTEX : MDC1930
NAPA : NBD5016
National : NBD1609
SKF : VKBD 90589 S2
TEXTAR : 92177303
VALEO : 197594

Apec DSK2639 Brake Disc
