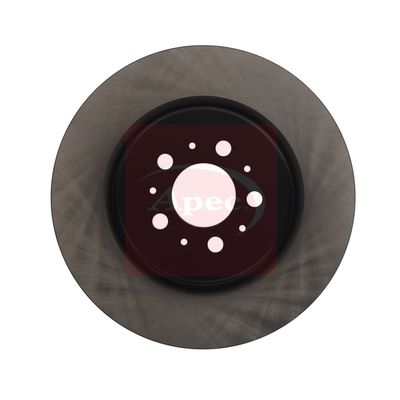

Apec DSK2688 Brake Disc - 1
Apec DSK2688 Brake Disc - 2
Apec DSK2688 Brake Disc - 1
Apec DSK2688 Brake Disc - 2
APEC

Apec DSK2688 Brake Disc

SKU: DSK2688
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£57.55 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VOLVO
S60 I (384)
Description Cylinder Capacity Horse Power Year
R 2,5 T AWD 2521 CCM 300 HP 01/2003 - 04/2010
V70 Mk II (285)
Description Cylinder Capacity Horse Power Year
R 2,5 T AWD 2521 CCM 300 HP 03/2003 - 08/2007

The Apec DSK2688 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 330 mm outer diameter, 28 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 330
Brake Disc Thickness [mm] : 28
Height [mm] : 65
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 68
Number of Holes : 5
Machining : High-carbon
  • Vendor APEC
  • SKU DSK2688
  • Barcode 5028906090890
  • VOLVO : 30645223 8672113
  • BLUE PRINT : ADF124381
  • BORG & BECK : BBD4680
  • BREMBO : 09.8615.11
  • DELPHI : BG4306
  • DELPHI : BG4306C
  • FEBI BILSTEIN : 108195
  • HELLA : 8DD 355 115-601
  • MINTEX : MDC1940
  • TEXTAR : 92178303
  • TRW : DF4729
  • VALEO : 197661
