Apec DSK2692 Brake Disc - 1
Apec DSK2692 Brake Disc - 2
Apec DSK2692 Brake Disc - 1
Apec DSK2692 Brake Disc - 2
APEC

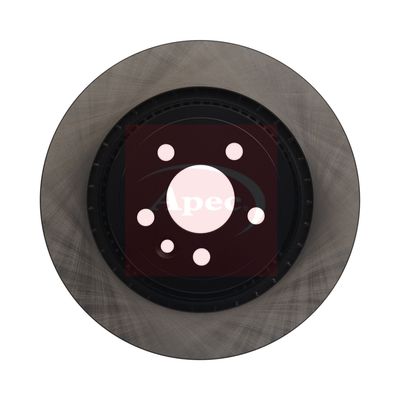

Apec DSK2692 Brake Disc

SKU: DSK2692
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£54.09 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VOLVO
S60 II (134)
Description Cylinder Capacity Horse Power Year
T6 AWD 2953 CCM 304 HP 04/2010 - 12/2015
T6 AWD 2953 CCM 329 HP 04/2014 - 12/2015
S60 II Cross Country (134)
Description Cylinder Capacity Horse Power Year
D4 AWD 2400 CCM 190 HP 03/2015 - 05/2018
S80 II (124)
Description Cylinder Capacity Horse Power Year
T6 AWD 2953 CCM 305 HP 10/2010 - 12/2015
3.2 AWD 3192 CCM 243 HP 01/2010 - 12/2014
3.2 3192 CCM 243 HP 01/2010 - 12/2014
D5 AWD 2400 CCM 215 HP 06/2011 - 04/2015
D5 2400 CCM 215 HP 06/2011 - 04/2015
D5 2400 CCM 185 HP 03/2006 - 08/2009
4.4 V8 AWD 4414 CCM 316 HP 03/2006 - 03/2012
2.5 T 2521 CCM 200 HP 03/2006 - 12/2011
3.2 3192 CCM 238 HP 03/2006 - 12/2010
2.4 D 2400 CCM 163 HP 03/2006 - 03/2011
V60 I (155)
Description Cylinder Capacity Horse Power Year
2.0 T 1999 CCM 203 HP 07/2010 - 12/2012
D3 / D4 1984 CCM 163 HP 07/2010 - 12/2014
D5 2400 CCM 205 HP 07/2010 - 12/2011
D5 AWD 2400 CCM 205 HP 07/2010 - 12/2011
T3 1596 CCM 150 HP 09/2010 - 12/2015
T4 1596 CCM 180 HP 09/2010 - 12/2015
T5 1999 CCM 241 HP 09/2010 - 12/2014
T6 AWD 2953 CCM 305 HP 07/2010 - 12/2015
D5 2400 CCM 215 HP 04/2011 - 12/2015
D5 AWD 2400 CCM 215 HP 04/2011 - 12/2015
T4F 1596 CCM 180 HP 04/2011 - 12/2015
D6 Hybrid AWD 2400 CCM 280 HP 06/2012 - 12/2015
D3 1984 CCM 136 HP 05/2012 - 12/2015
D4 AWD 2400 CCM 163 HP 05/2012 - 12/2015
V60 I Cross Country (157)
Description Cylinder Capacity Horse Power Year
D4 Drive-E Polestar 1969 CCM 200 HP 03/2015 - 05/2018
D4 Polestar AWD 2400 CCM 200 HP 03/2015 - 05/2018
D2 1969 CCM 120 HP 03/2015 - 05/2018
D3 1969 CCM 150 HP 03/2015 - 05/2018
D4 1969 CCM 190 HP 03/2015 - 05/2018
D4 AWD 2400 CCM 190 HP 03/2015 - 05/2018
V70 III (135)
Description Cylinder Capacity Horse Power Year
D5 2400 CCM 215 HP 04/2011 - 12/2015
D5 AWD 2400 CCM 215 HP 04/2011 - 12/2015
3.2 AWD 3192 CCM 243 HP 04/2010 - 12/2015
T6 AWD 2953 CCM 305 HP 01/2010 - 12/2015
3.2 AWD 3192 CCM 238 HP 04/2007 - 12/2010
T6 AWD 2953 CCM 286 HP 08/2007 - 12/2010
XC70 II (136)
Description Cylinder Capacity Horse Power Year
3.2 AWD 3192 CCM 243 HP 05/2010 - 12/2014
T6 AWD 2953 CCM 304 HP 01/2010 - 04/2015
D5 AWD 2400 CCM 215 HP 04/2011 - 12/2015
D3 1984 CCM 163 HP 04/2010 - 12/2015
3.2 AWD 3192 CCM 238 HP 08/2007 - 12/2011
D5 AWD 2400 CCM 185 HP 04/2007 - 12/2009
2.4 D / D4 AWD 2400 CCM 163 HP 08/2007 - 04/2016
T6 AWD 2953 CCM 286 HP 01/2008 - 12/2016
D5 AWD 2400 CCM 205 HP 04/2009 - 12/2011
2.4 D 2400 CCM 175 HP 06/2009 - 12/2010
D4 AWD 2400 CCM 181 HP 10/2013 - 04/2016
D4 1969 CCM 181 HP 10/2013 - 04/2016
D5 AWD 2400 CCM 220 HP 03/2015 - 04/2016
XC70 II VAN (136)
Description Cylinder Capacity Horse Power Year
2.0 D4 1984 CCM 163 HP 09/2013 - 12/2016

The Apec DSK2692 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 302 mm outer diameter, 22 mm brake disc thickness, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 302
Brake Disc Thickness [mm] : 22
Height [mm] : 41
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 64
Number of Holes : 5
  • Vendor APEC
  • SKU DSK2692
  • Barcode 5028906090937
  • VOLVO : 30769060 31341483 31471028
  • APEC : SDK6600
  • BLUE PRINT : ADF124310
  • BORG & BECK : BBD4759
  • BOSCH : 0 986 479 398
  • BREMBO : 09.9587.11
  • BREMBO : 09.9587.1X
  • DELPHI : BG4240
  • DELPHI : BG4240C
  • Fahren : FBD6600
  • FEBI BILSTEIN : 170050
  • HELLA : 8DD 355 129-551
  • MEYLE : 515 523 0006/PD
  • MINTEX : MDC2034
  • NAPA : NBD5438
  • National : NBD1751
  • SKF : VKBD 91075 V2
  • TEXTAR : 92168305
