Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Apec DSK2702 Brake Disc - 1
Apec DSK2702 Brake Disc - 2
Apec DSK2702 Brake Disc - 1
Apec DSK2702 Brake Disc - 2
APEC

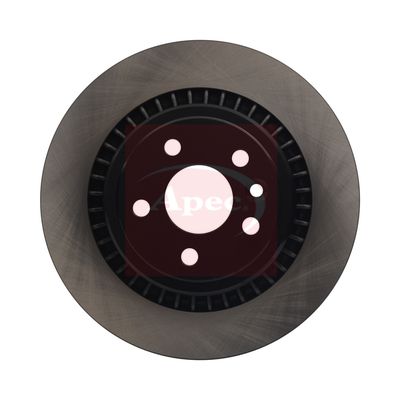

Apec DSK2702 Brake Disc

SKU: DSK2702
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£46.15 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VOLVO
XC60 I SUV (156)
Description Cylinder Capacity Horse Power Year
T5 1999 CCM 241 HP 09/2010 - 02/2017
D5 AWD 2400 CCM 215 HP 04/2011 - 12/2015
D5 2400 CCM 215 HP 06/2011 - 02/2017
T6 AWD 2953 CCM 286 HP 05/2008 - 12/2010
2.4 D / D3 / D4 AWD 2400 CCM 163 HP 05/2008 - 02/2017
D5 AWD 2400 CCM 185 HP 05/2008 - 12/2009
D5 AWD 2400 CCM 205 HP 07/2009 - 06/2011
2.4 D 2400 CCM 175 HP 04/2009 - 12/2010
3.2 AWD 3192 CCM 238 HP 07/2009 - 12/2010
2.0 T 1999 CCM 203 HP 12/2009 - 12/2012
3.2 AWD 3192 CCM 243 HP 03/2010 - 12/2015
T6 AWD 2953 CCM 304 HP 03/2010 - 02/2017
D3 / D4 1984 CCM 163 HP 03/2010 - 12/2014
D3 1984 CCM 136 HP 04/2012 - 12/2015
D4 AWD 2400 CCM 181 HP 10/2013 - 12/2015
XC60 I VAN (156)
Description Cylinder Capacity Horse Power Year
D3 1984 CCM 136 HP 09/2013 - 12/2015
D5 AWD 2400 CCM 215 HP 09/2013 - 02/2017
XC60 II (246)
Description Cylinder Capacity Horse Power Year
D3 1969 CCM 150 HP 03/2017 - 12/2021

The Apec DSK2702 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 302 mm outer diameter, 22 mm brake disc thickness, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 302
Brake Disc Thickness [mm] : 22
Height [mm] : 51
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 64
Number of Holes : 5
  • Vendor APEC
  • SKU DSK2702
  • Barcode 5028906091033
  • VOLVO : 31277357 31410569 31471033
  • APEC : SDK6606
  • BLUE PRINT : ADF124303
  • BORG & BECK : BBD4767
  • BOSCH : 0 986 479 713
  • DELPHI : BG4270
  • Fahren : FBD6606
  • FEBI BILSTEIN : 39620
  • HELLA : 8DD 355 116-191
  • MEYLE : 515 523 0009/PD
  • MINTEX : MDC2199
  • NAPA : NBD5074
  • National : NBD1761
  • SKF : VKBD 90084 V2
  • TEXTAR : 92196403
  • VALEO : 197763
