APEC

Apec DSK2704 Brake Disc

SKU: DSK2704

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£41.91 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ

S-CLASS (W221, V221)

Description	Cylinder Capacity	Horse Power	Year
S 350 BlueTec (221.026, 221.126)	2987 CCM	258 HP	04/2011 - 12/2013
S 500 CGI (221.073, 221.173)	4663 CCM	435 HP	04/2011 - 12/2013
S 500 (221.071, 221.171)	5461 CCM	388 HP	10/2005 - 12/2013
S 320 CDI (221.022, 221.122)	2987 CCM	235 HP	12/2005 - 06/2009

S-CLASS Coupe (C216)

Description	Cylinder Capacity	Horse Power	Year
CL 500 (216.373)	4663 CCM	435 HP	02/2011 - 12/2013
CL 500 (216.371)	5461 CCM	388 HP	06/2006 - 12/2013

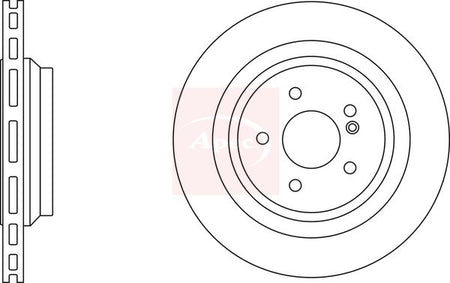

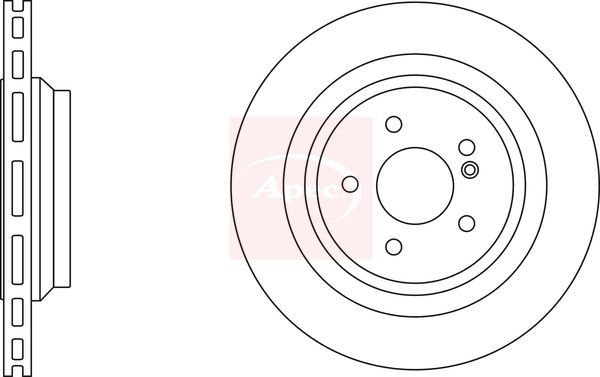

The Apec DSK2704 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 320 mm outer diameter, 24 mm brake disc thickness, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 320

Brake Disc Thickness [mm] : 24

Height [mm] : 58

Bolt Hole Circle Ø [mm] : 112

Centering Diameter [mm] : 67

Number of Holes : 5

BLUE PRINT : ADU174380
BORG & BECK : BBD4677
BOSCH : 0 986 479 629
DELPHI : BG4144
FEBI BILSTEIN : 26405
HELLA : 8DD 355 128-751
MEYLE : 015 523 0014/PD
MINTEX : MDC2291
SKF : VKBD 90675 V1
TEXTAR : 92160703
TEXTAR : 92160705
VALEO : 197747

Apec DSK2704 Brake Disc
