Apec DSK2709 Brake Disc - 1
Apec DSK2709 Brake Disc - 1
APEC

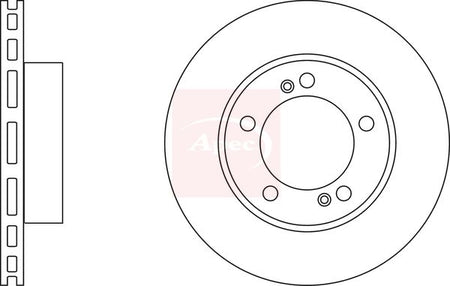

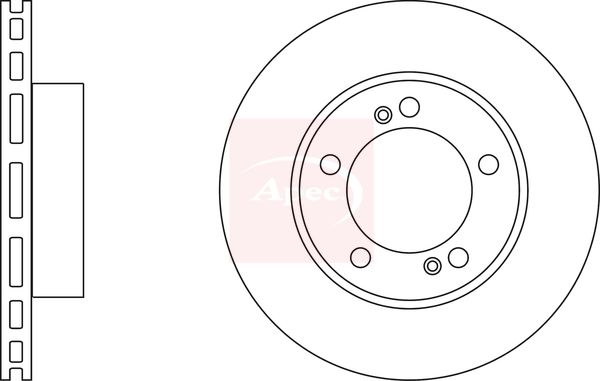

Apec DSK2709 Brake Disc

SKU: DSK2709
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£53.22 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SSANGYONG
RODIUS I
Description Cylinder Capacity Horse Power Year
2.7 Xdi 2696 CCM 165 HP From 05/2005
2.7 Xdi 4WD 2696 CCM 165 HP From 05/2005
2.7 Xdi 2696 CCM 163 HP From 05/2005
2.7 Xdi 4WD 2696 CCM 163 HP From 05/2005
RODIUS II VAN (CA1)
Description Cylinder Capacity Horse Power Year
e-XDi 2157 CCM 178 HP From 07/2015
e-XDi 4WD 2157 CCM 178 HP From 07/2015
TURISMO II
Description Cylinder Capacity Horse Power Year
2.0 Xdi 4WD 1998 CCM 155 HP From 07/2013
2.0 Xdi 1998 CCM 155 HP From 07/2013
2.2 Xdi 2157 CCM 178 HP From 07/2015
2.2 Xdi 4WD 2157 CCM 178 HP From 07/2015

The Apec DSK2709 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 300 mm outer diameter, 28 mm brake disc thickness, and 85 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 300
Brake Disc Thickness [mm] : 28
Height [mm] : 68
Bolt Hole Circle Ø [mm] : 130
Centering Diameter [mm] : 85
Number of Holes : 5
Test Mark : 90R-02C01195/34523
  • Vendor APEC
  • SKU DSK2709
  • Barcode 5028906091101
  • SSANGYONG : 4144121000
  • BLUE PRINT : ADG043117
  • BORG & BECK : BBD5189
  • DELPHI : BG4207
  • HELLA : 8DD 355 116-461
  • MINTEX : MDC2210
  • National : NBD2238
  • TEXTAR : 92203003
  • VALEO : 197650
