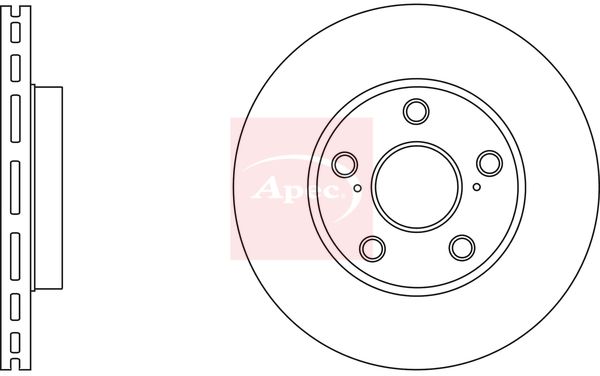

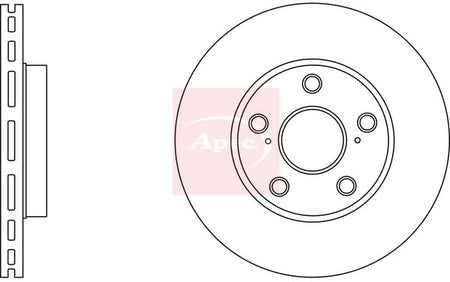

Apec DSK2741 Brake Disc - 1
Apec DSK2741 Brake Disc - 1
APEC

Apec DSK2741 Brake Disc

SKU: DSK2741
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£33.94 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
AURIS (_E15_)
Description Cylinder Capacity Horse Power Year
1.5 (NZE151_, NZE151N) 1497 CCM 110 HP 10/2006 - 08/2012
1.5 4WD (NZE154_, NZE154R) 1497 CCM 105 HP 10/2006 - 09/2012
1.6 (ZRE151_, ZRE151R) 1598 CCM 124 HP 03/2007 - 09/2012
1.4 (ZZE150_, ZZE150R) 1398 CCM 97 HP 03/2007 - 09/2012
1.33 Dual-VVTi (NRE150_, NRE150R) 1329 CCM 101 HP 05/2009 - 09/2012
1.6 (ZRE151_, ZRE151R) 1598 CCM 132 HP 05/2009 - 09/2012
1.33 Dual-VVTi (NRE150_, NRE150R) 1329 CCM 99 HP 01/2010 - 09/2012
COROLLA Saloon (_E15_)
Description Cylinder Capacity Horse Power Year
1.4 VVT-i (ZZE150_) 1398 CCM 97 HP 11/2006 - 11/2013
1.3 (NRE150) 1329 CCM 101 HP 12/2008 - 07/2014
1.4 D-4D (NDE150) 1364 CCM 90 HP 10/2006 - 07/2014

The Apec DSK2741 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 275 mm outer diameter, 22 mm brake disc thickness, and 14 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 275
Brake Disc Thickness [mm] : 22
Height [mm] : 46
Bolt Hole Circle Ø [mm] : 114
Wheel Bolt Bore Diameter [mm] : 14
Centering Diameter [mm] : 62
Number of Holes : 5
Test Mark : 90R-02C0301/0002
  • Vendor APEC
  • SKU DSK2741
  • Barcode 5028906091422
  • TOYOTA : 4351212670
  • APEC : SDK6621
  • BLUE PRINT : ADT343261
  • BORG & BECK : BBD4807
  • BOSCH : 0 986 479 341
  • BOSCH : 0 986 479 R97
  • DELPHI : BG4232
  • FEBI BILSTEIN : 108481
  • HELLA : 8DD 355 118-961
  • MEYLE : 30-15 521 0061
  • MINTEX : MDC2050
  • NAPA : NBD5800
  • National : NBD1635
  • SKF : VKBD 80694 V2
  • TEXTAR : 92163803
  • VALEO : 197183
  • VALEO : 672756
