Apec DSK2743 Brake Disc - 1
Apec DSK2743 Brake Disc - 1
APEC

Apec DSK2743 Brake Disc

SKU: DSK2743
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£66.77 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

IVECO
DAILY IV Platform/Chassis
Description Cylinder Capacity Horse Power Year
60C18 2998 CCM 176 HP 05/2006 - 08/2011
65C18 2998 CCM 176 HP 05/2006 - 08/2011
DAILY VI Platform/Chassis
Description Cylinder Capacity Horse Power Year
35S14, 35S15, 35C15, 40S14, 40C15, 50C15, 60C5, 65C15,... 2998 CCM 146 HP From 03/2014
35S17, 35C17, 40C17, 45S17,45C17, 50C17, 60C17, 65C17,... 2998 CCM 170 HP From 03/2014
35S21, 35C21, 40C21, 45C21, 50C21, 60C21, 65C21, 70C21 2998 CCM 204 HP From 03/2014
NaturalPower 35S14, 35C, 38S, 40C, 50C, 60C, 65C, 70C 2998 CCM 136 HP From 03/2014
35S15, 35C15, 40C15, 50C15, 60C15, 65C15, 70C15 2998 CCM 150 HP From 04/2016
35S18, 35C18, 40C18, 45C18, 50C18, 60C18, 65C18, 70C18 2998 CCM 180 HP From 04/2016
DAILY VI Bus
Description Cylinder Capacity Horse Power Year
40C18, 50C18, 60C18 2998 CCM 180 HP From 04/2016
50C18, 60C18 2998 CCM 175 HP From 07/2021
DAILY VI Van
Description Cylinder Capacity Horse Power Year
35S15, 35C15, 40C15, 45C15, 50C15, 65C15, 70C15 2998 CCM 146 HP From 03/2014
35S17, 35C17, 40C17, 50C17, 55C17, 60C17, 65C17, 70C17 2998 CCM 170 HP From 03/2014
NaturalPower 35S14, 35C, 38S, 40C, 50C, 60C, 65C, 70C 2998 CCM 136 HP From 03/2014
35S15, 35C15, 40C15, 50C15, 60C15, 65C15, 70C15 2998 CCM 150 HP From 04/2016
35S18, 35C18, 40C18, 50C18, 60C18, 65C18, 70C18 2998 CCM 180 HP From 04/2016

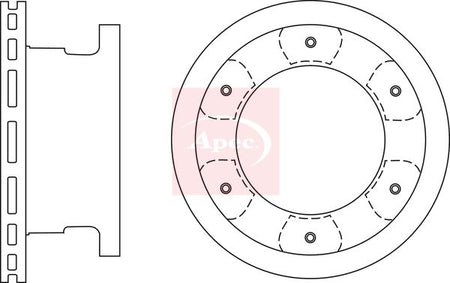

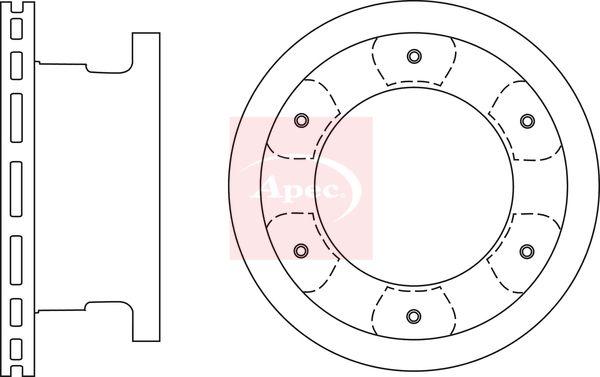

The Apec DSK2743 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 306 mm outer diameter, 28 mm brake disc thickness, and 178 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 306
Brake Disc Thickness [mm] : 28
Height [mm] : 132
Bolt Hole Circle Ø [mm] : 215
Centering Diameter [mm] : 178
Number of Holes : 6
  • Vendor APEC
  • SKU DSK2743
  • Barcode 5028906091446
  • IVECO : 2996049 46393184 5802729163 7186848
  • BLUE PRINT : ADL144341
  • BORG & BECK : BBD5921S
  • BREMBO : 09.9763.10
  • DELPHI : BG9069
  • FEBI BILSTEIN : 106489
  • HELLA : 8DD 355 115-551
  • MEYLE : 215 523 0034
  • MINTEX : MDC1934
  • National : NBD2509
  • SKF : VKBD 90615 V1
  • TEXTAR : 93177703
