Apec DSK2752 Brake Disc - 1
Apec DSK2752 Brake Disc - 2
Apec DSK2752 Brake Disc - 1
Apec DSK2752 Brake Disc - 2
APEC

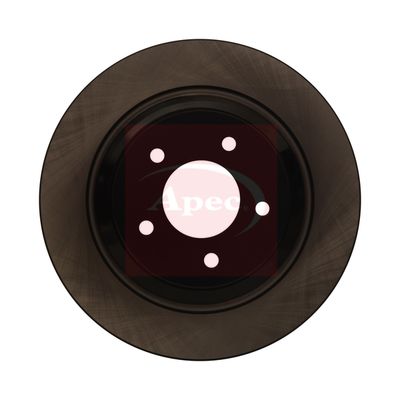

Apec DSK2752 Brake Disc

SKU: DSK2752
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£31.61 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA
5 (CR)
Description Cylinder Capacity Horse Power Year
1.8 (CR19) 1798 CCM 116 HP 02/2005 - 05/2010
2.0 (CREW, CR19) 1999 CCM 146 HP 02/2005 - 05/2010
2.0 CD (CR19) 1998 CCM 110 HP 02/2005 - 05/2010
2.0 CD (CR19) 1998 CCM 143 HP 02/2005 - 05/2010
5 (CW)
Description Cylinder Capacity Horse Power Year
1.6 CD 1560 CCM 116 HP From 07/2010
2.0 (CWEFW) 1999 CCM 150 HP From 09/2010
2.0 (CWEFW) 1999 CCM 144 HP From 06/2010
1.8 MZR 1798 CCM 116 HP From 09/2010
2.0 (CWFFW) 1998 CCM 151 HP From 08/2014
2.0 1999 CCM 147 HP From 01/2011

The Apec DSK2752 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 302 mm outer diameter, 11 mm brake disc thickness, and 14 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 302
Brake Disc Thickness [mm] : 11
Height [mm] : 41
Bolt Hole Circle Ø [mm] : 114
Wheel Bolt Bore Diameter [mm] : 14
Centering Diameter [mm] : 72
Number of Holes : 5
Test Mark : 90R-02C 01275/31252
  • Vendor APEC
  • SKU DSK2752
  • Barcode 5028906091538
  • MAZDA : C23Y26251A C26Y26251A
  • APEC : SDK6625
  • BLUE PRINT : ADM54393
  • BORG & BECK : BBD4522
  • BOSCH : 0 986 479 233
  • BOSCH : 0 986 479 C69
  • DELPHI : BG4026
  • Fahren : FBD6625
  • FEBI BILSTEIN : 108465
  • HELLA : 8DD 355 112-901
  • MEYLE : 35-15 523 0016
  • MINTEX : MDC2202
  • NAPA : NBD5594
  • National : NBD1600
  • SKF : VKBD 90777 S2
  • TEXTAR : 92148200
  • VALEO : 197704
  • VALEO : 672955
