Apec DSK2759 Brake Disc - 1
Apec DSK2759 Brake Disc - 1
APEC

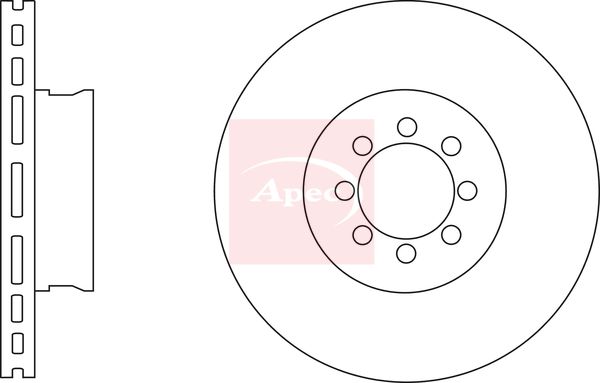

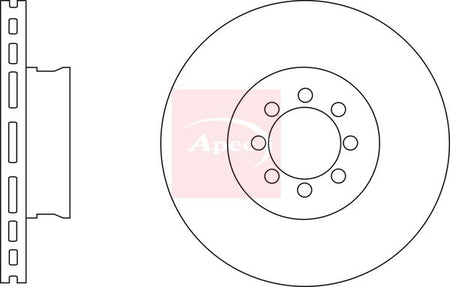

Apec DSK2759 Brake Disc

SKU: DSK2759
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£68.78 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
SPRINTER 5-t Platform/Chassis (B905)
Description Cylinder Capacity Horse Power Year
616 CDI (905.612, 905.613, 905.622, 905.623) 2685 CCM 156 HP 04/2001 - 05/2006

The Apec DSK2759 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 290 mm outer diameter, 26 mm brake disc thickness, and 14 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 290
Brake Disc Thickness [mm] : 26
Height [mm] : 70
Bolt Hole Circle Ø [mm] : 96
Wheel Bolt Bore Diameter [mm] : 14
Centering Diameter [mm] : 70
Number of Holes : 8
Test Mark : 90R-02C01195/26088
  • Vendor APEC
  • SKU DSK2759
  • Barcode 5028906091606
  • MERCEDES-BENZ : 9054210012 A9054210012
  • BLUE PRINT : ADU1743108
  • BORG & BECK : BBD5298
  • BOSCH : 0 986 479 602
  • BREMBO : 09.B749.40
  • DELPHI : BG4679C
  • FEBI BILSTEIN : 30542
  • MEYLE : 015 521 2106
  • TEXTAR : 93150300
  • TRW : DF6250S
