Apec DSK2768 Brake Disc - 1
Apec DSK2768 Brake Disc - 1
APEC

Apec DSK2768 Brake Disc

SKU: DSK2768
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£34.91 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
HILUX VIGO VII Pickup (_N1_, _N2_, _N3_)
Description Cylinder Capacity Horse Power Year
2.5 D-4D (KUN15_, KUN15R) 2494 CCM 120 HP 06/2006 - 05/2015
2.5 D-4D (KUN15, KUN10) 2494 CCM 102 HP 03/2005 - 05/2015
2.5 D-4D (KUN15) 2494 CCM 88 HP 08/2005 - 10/2006

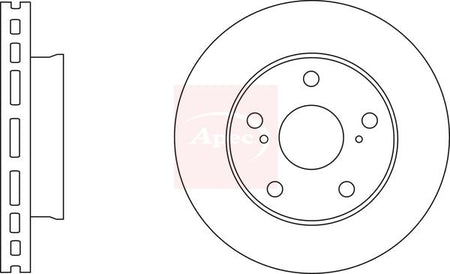

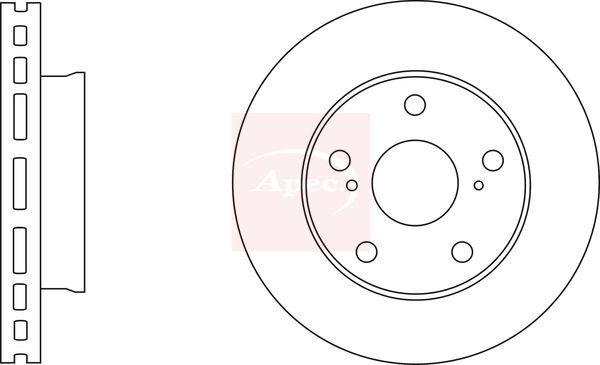

The Apec DSK2768 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 257 mm outer diameter, 28 mm brake disc thickness, and 14 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 257
Brake Disc Thickness [mm] : 28
Height [mm] : 58
Bolt Hole Circle Ø [mm] : 114
Wheel Bolt Bore Diameter [mm] : 14
Centering Diameter [mm] : 62
Number of Holes : 5
  • Vendor APEC
  • SKU DSK2768
  • Barcode 5028906091699
  • TOYOTA : 435120K010 435120K020 435120K030
  • BLUE PRINT : ADT343210
  • BLUE PRINT : ADT343233
  • BORG & BECK : BBD5177
  • BORG & BECK : BBD5256
  • BOSCH : 0 986 479 R53
  • BREMBO : 09.A130.10
  • BREMBO : 09.A130.20
  • DELPHI : BG4181
  • MINTEX : MDC2303
  • MINTEX : MDC2322
  • National : NBD1732
  • TEXTAR : 92236003
  • VALEO : 197713
