Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs

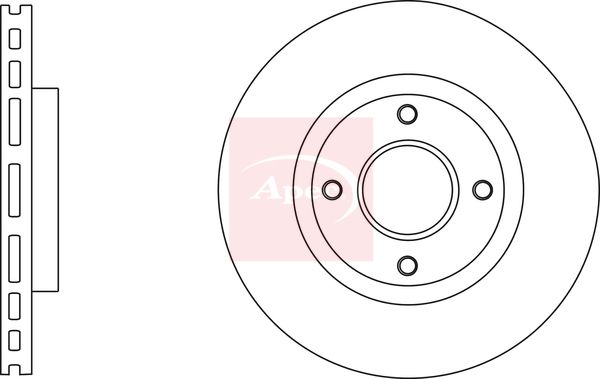

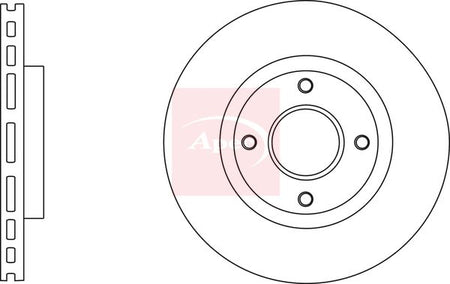

Apec DSK2771 Brake Disc - 1
Apec DSK2771 Brake Disc - 1
APEC

Apec DSK2771 Brake Disc

SKU: DSK2771
Your selected vehicle
Out of stock
Out of Stock
£36.06 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

NISSAN
CUBE (Z12)
Description Cylinder Capacity Horse Power Year
1.5 dCi 1461 CCM 110 HP From 03/2010
1.6 16V 1598 CCM 110 HP From 08/2009
1.5 dCi 1461 CCM 106 HP From 10/2009
TIIDA Saloon (SC11)
Description Cylinder Capacity Horse Power Year
1.6 (C11L) 1598 CCM 110 HP 09/2007 - 12/2012
1.8 1798 CCM 126 HP 09/2007 - 12/2012
1.5 dCi 1461 CCM 106 HP 09/2007 - 12/2012
1.5 dCi 1461 CCM 103 HP 01/2007 - 12/2012
TIIDA Hatchback (C11)
Description Cylinder Capacity Horse Power Year
1.6 1598 CCM 110 HP 09/2007 - 12/2011
1.8 (JC11) 1798 CCM 126 HP 09/2004 - 12/2011
1.5 dCi 1461 CCM 106 HP 09/2007 - 12/2011
1.5 dCi 1461 CCM 103 HP 03/2007 - 06/2013
NISSAN (DFAC)
TIIDA Saloon (C11)
Description Cylinder Capacity Horse Power Year
1.6 1598 CCM 107 HP From 04/2005

The Apec DSK2771 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 279 mm outer diameter, 24 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 279
Brake Disc Thickness [mm] : 24
Height [mm] : 44
Bolt Hole Circle Ø [mm] : 114
Wheel Bolt Bore Diameter [mm] : 13
Centering Diameter [mm] : 68
Number of Holes : 4
Test Mark : 90R-02C0370/0030
  • Vendor APEC
  • SKU DSK2771
  • Barcode 5028906091729
  • NISSAN : 40206EM10A 40206EM10B 40206ET00A 40206ET00C 40206ET01C 40206ET02C 40206ZW90A D0206EM10B
  • APEC : SDK6633
  • BLUE PRINT : ADN143133
  • BORG & BECK : BBD5184
  • BOSCH : 0 986 479 737
  • BOSCH : 0 986 479 U62
  • BREMBO : 09.B632.10
  • DELPHI : BG4337
  • FEBI BILSTEIN : 170744
  • HELLA : 8DD 355 120-591
  • MEYLE : 36-15 521 0052
  • MINTEX : MDC2618
  • NAPA : NBD5803
  • National : NBD1710
  • SKF : VKBD 80734 V2
  • TEXTAR : 92269200
  • TEXTAR : 92269203
  • TRW : DF6142
  • VALEO : 197644
  • VALEO : 673458
