Apec DSK2778 Brake Disc - 1
Apec DSK2778 Brake Disc - 1
APEC

Apec DSK2778 Brake Disc

SKU: DSK2778
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£50.26 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

LOTUS
2 ELEVEN
Description Cylinder Capacity Horse Power Year
1.8 1796 CCM 193 HP 04/2007 - 07/2011
1.8 1796 CCM 256 HP 04/2007 - 07/2011
ELISE
Description Cylinder Capacity Horse Power Year
1.8 1796 CCM 122 HP 11/2000 - 08/2005
1.8 1796 CCM 160 HP From 05/2002
1.8 1796 CCM 192 HP From 01/2004
1.8 1796 CCM 190 HP 11/2002 - 10/2013
1.8 1796 CCM 135 HP From 10/2003
1.6 1598 CCM 136 HP From 06/2007
1.8 1798 CCM 220 HP From 06/2007
1.8 1796 CCM 223 HP 01/2004 - 10/2013
CUP 250 1798 CCM 246 HP From 02/2016
1.8 VVTi Supercharged 1796 CCM 220 HP 01/2008 - 12/2009
1.8 1796 CCM 137 HP 07/2002 - 12/2003
Sport 240 1798 CCM 243 HP From 01/2021
1.8 Cup 250 1798 CCM 249 HP From 02/2021
EUROPA S
Description Cylinder Capacity Horse Power Year
2.0 Turbo 1998 CCM 200 HP From 07/2006
2.0 Turbo 1998 CCM 224 HP From 09/2008
EXIGE (SCC_)
Description Cylinder Capacity Horse Power Year
1.8 16V 1796 CCM 180 HP 05/2000 - 07/2008
1.8 16V 1796 CCM 192 HP 09/2001 - 07/2008
1.8 16V 1796 CCM 222 HP 04/2006 - 06/2012
1.8 Cup 240 1796 CCM 246 HP 04/2006 - 06/2012
1.8 Cup 260 1796 CCM 260 HP 04/2006 - 06/2012
1.8 S 1796 CCM 243 HP 01/2008 - 04/2011

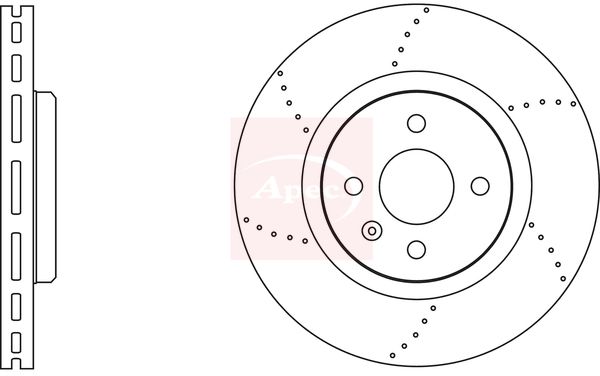

The Apec DSK2778 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 288 mm outer diameter, 26 mm brake disc thickness, and 14 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Outer Diameter [mm] : 288
Brake Disc Thickness [mm] : 26
Height [mm] : 44
Bolt Hole Circle Ø [mm] : 100
Wheel Bolt Bore Diameter [mm] : 14
Centering Diameter [mm] : 60
Number of Holes : 4
  • Vendor APEC
  • SKU DSK2778
  • Barcode 5028906091798
  • LOTUS : A117J0031F B117J0031F C117J0031F D117J0031F
  • BLUE PRINT : ADT343174
