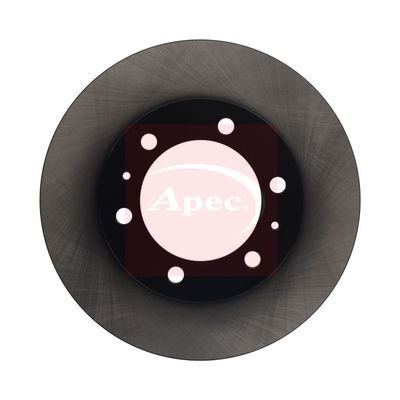

Apec DSK2782 Brake Disc

SKU: DSK2782
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£41.82 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
HILUX VIGO VII Pickup (_N1_, _N2_, _N3_)
Description Cylinder Capacity Horse Power Year
2.5 D 4WD (KUN25) 2494 CCM 102 HP 03/2005 - 05/2015
2.5 D-4D 4WD (KUN25_, KUN25R) 2494 CCM 120 HP 06/2006 - 05/2015
3.0 D-4D 4WD (KUN26) 2982 CCM 171 HP 08/2005 - 09/2015
2.5 D-4D 4WD (KUN25) 2494 CCM 144 HP 12/2007 - 05/2015
2.5 D-4D 4WD (KUN25_) 2494 CCM 128 HP 11/2004 - 12/2005
3.0 D-4D 4WD (KUN26) 2982 CCM 197 HP 05/2008 - 12/2012
3.0 D-4D 4WD (KUN26) 2982 CCM 169 HP 08/2005 - 05/2015
HILUX VII Platform/Chassis (_N1_, _N2_)
Description Cylinder Capacity Horse Power Year
3.0 D 4WD (KUN26) 2982 CCM 171 HP From 02/2005

The Apec DSK2782 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 297 mm outer diameter, 25 mm brake disc thickness, and 15 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 297
Brake Disc Thickness [mm] : 25
Height [mm] : 67
Bolt Hole Circle Ø [mm] : 140
Wheel Bolt Bore Diameter [mm] : 15
Centering Diameter [mm] : 108
Number of Holes : 6
Test Mark : 90R-02C0703/2561
  • Vendor APEC
  • SKU DSK2782
  • Barcode 5028906091835
  • TOYOTA : 435120K060 435120K070 435120K071
  • APEC : SDK6636
  • BLUE PRINT : ADT343211
  • BORG & BECK : BBD4815
  • BOSCH : 0 986 479 A96
  • DELPHI : BG4211
  • DELPHI : BG4211C
  • Fahren : FBD6636
  • FEBI BILSTEIN : 108399
  • HELLA : 8DD 355 116-821
  • MEYLE : 30-15 521 0126
  • MINTEX : MDC2184
  • NAPA : NBD5284
  • National : NBD1733
  • SKF : VKBD 80346 V2
  • TEXTAR : 92222600
