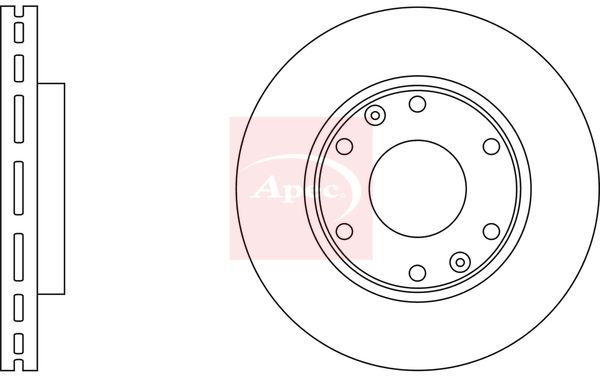

Apec DSK2786 Brake Disc - 1
Apec DSK2786 Brake Disc - 1
APEC

Apec DSK2786 Brake Disc

SKU: DSK2786
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£68.20 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HYUNDAI
i800 Travel (TQ)
Description Cylinder Capacity Horse Power Year
2.5 CRDI 2497 CCM 136 HP From 07/2008
2.5 CRDi 2497 CCM 170 HP From 05/2008
2.5 CRDi 2497 CCM 110 HP From 07/2010
iLOAD Cargo (TQ)
Description Cylinder Capacity Horse Power Year
2.5 CRDi 2497 CCM 170 HP From 02/2008
2.5 CRDi 2497 CCM 116 HP From 01/2009

The Apec DSK2786 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 300 mm outer diameter, 30 mm brake disc thickness, and 12 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 300
Brake Disc Thickness [mm] : 30
Height [mm] : 52
Bolt Hole Circle Ø [mm] : 140
Wheel Bolt Bore Diameter [mm] : 12
Centering Diameter [mm] : 96
Number of Holes : 6
Test Mark : 90R-02C0301/0139
  • Vendor APEC
  • SKU DSK2786
  • Barcode 5028906091873
  • HYUNDAI : 517124H000 517124H500
  • APEC : SDK6638
  • BLUE PRINT : ADG043140
  • BORG & BECK : BBD5927S
  • BREMBO : 09.B611.10
  • DELPHI : BG4296
  • Fahren : FBD6638
  • FEBI BILSTEIN : 170609
  • HELLA : 8DD 355 116-481
  • MEYLE : 37-15 521 0025
  • MINTEX : MDC2312
  • NAPA : NBD5634
  • National : NBD1688
  • SKF : VKBD 80564 V1
  • TEXTAR : 92203800
  • TRW : DF6446
  • VALEO : 672988
