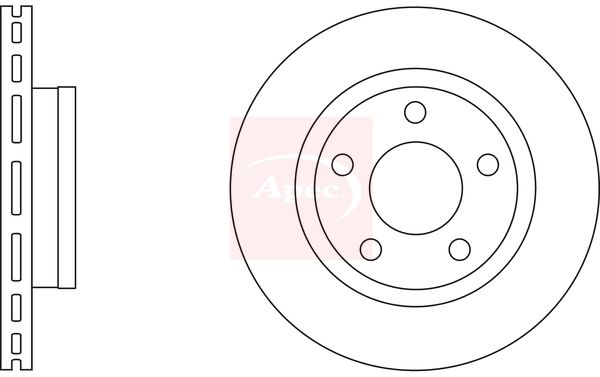

Apec DSK2793 Brake Disc - 1

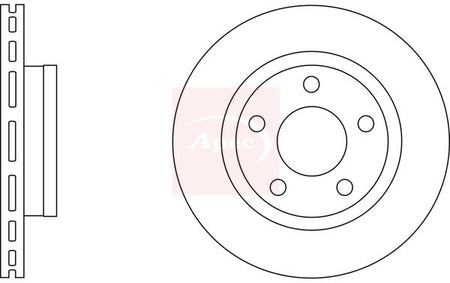

Apec DSK2793 Brake Disc - 1
APEC

Apec DSK2793 Brake Disc

SKU: DSK2793
Your selected vehicle
Out of stock
Out of Stock
£33.95 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VW
PASSAT B5.5 Estate (3B6)
Description Cylinder Capacity Horse Power Year
2.8 4motion 2771 CCM 193 HP 11/2000 - 05/2005
2.5 TDI 4motion 2496 CCM 150 HP 11/2000 - 05/2005
1.9 TDI 4motion 1896 CCM 130 HP 11/2000 - 05/2005
2.0 4motion 1984 CCM 115 HP 11/2000 - 05/2005
2.3 VR5 4motion 2324 CCM 170 HP 11/2000 - 05/2005
4.0 W8 4motion 3999 CCM 275 HP 09/2001 - 09/2004
2.5 TDI 4motion 2496 CCM 180 HP 01/2003 - 05/2005
PASSAT B5.5 (3B3)
Description Cylinder Capacity Horse Power Year
2.8 4motion 2771 CCM 193 HP 11/2000 - 05/2005
2.5 TDI 4motion 2496 CCM 150 HP 11/2000 - 05/2005
1.9 TDI 4motion 1896 CCM 130 HP 11/2000 - 05/2005
2.0 4motion 1984 CCM 115 HP 11/2000 - 05/2005
2.3 V5 4motion 2324 CCM 170 HP 11/2000 - 05/2005
4.0 W8 4motion 3999 CCM 275 HP 09/2001 - 09/2004
2.5 TDI 4motion 2496 CCM 180 HP 01/2003 - 05/2005

The Apec DSK2793 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 269 mm outer diameter, 22 mm brake disc thickness, and 15 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 269
Brake Disc Thickness [mm] : 22
Height [mm] : 54
Bolt Hole Circle Ø [mm] : 112
Wheel Bolt Bore Diameter [mm] : 15
Centering Diameter [mm] : 68
Number of Holes : 5
  • Vendor APEC
  • SKU DSK2793
  • Barcode 5028906091941
  • AUDI : 4B3615601
  • VW : 4B3615601
  • BLUE PRINT : ADV1843102
  • BORG & BECK : BBD4684
  • BOSCH : 0 986 479 A42
  • DELPHI : BG4057
  • FEBI BILSTEIN : 43869
  • HELLA : 8DD 355 128-951
  • MINTEX : MDC1921
  • SKF : VKBD 90832 V2
  • TEXTAR : 92176803
  • TRW : DF4352
  • VALEO : 197089
  • VALEO : 673506
