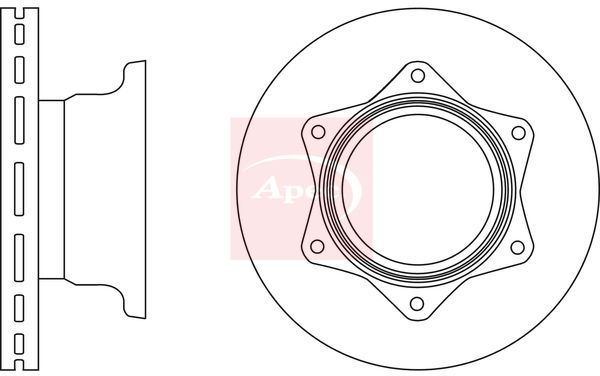

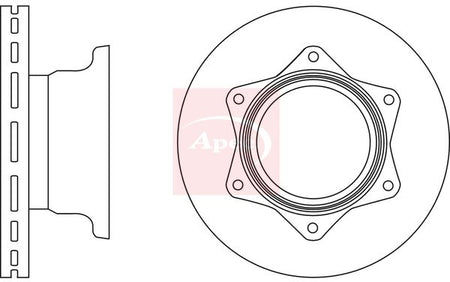

Apec DSK2797 Brake Disc - 1
Apec DSK2797 Brake Disc - 1
APEC

Apec DSK2797 Brake Disc

SKU: DSK2797
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£45.05 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
VARIO Platform/Chassis (B670, B668, B667)
Description Cylinder Capacity Horse Power Year
612 D (668.321, 668.322, 668.323) 2874 CCM 122 HP 09/1996 - 12/2010
612 D (668.331, 668.332) 2874 CCM 122 HP 09/1996 - 12/2010
613 D, 614 D (668.321, 668.322, 668.323) 4249 CCM 129 HP From 09/1996
613 D, 614 D (668.331, 668.332) 4249 CCM 129 HP 09/1996 - 12/2013
615 D, 616 D (668.321, 668.322, 668.323) 4249 CCM 152 HP From 09/1998
615 D, 616 D (668.331, 668.332) 4249 CCM 152 HP From 09/1998
812 D (670.321, 670.322, 670.323, 670.324) 2874 CCM 122 HP 09/1996 - 12/2010
812 D (670.331, 670.332) 2874 CCM 122 HP 09/1996 - 12/2010
813 D, 814 D (670.321, 670.322, 670.323, 670.324) 4249 CCM 129 HP 09/1996 - 12/2013
813 D, 814 D (670.331, 670.332) 4249 CCM 129 HP 09/1996 - 12/2013
815 D, 816 D (670.321, 670.322, 670.323, 670.324) 4249 CCM 152 HP 09/1996 - 12/2010
815 D, 816 D (670.331, 670.332) 4249 CCM 152 HP From 09/1996
VARIO Van (B667, B670, B668)
Description Cylinder Capacity Horse Power Year
612 D (668.351, 668.352, 668.353) 2874 CCM 122 HP 09/1996 - 12/2010
812 D (670.351, 670.352, 670.353) 2874 CCM 122 HP 09/1996 - 12/2010

The Apec DSK2797 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 304 mm outer diameter, 30 mm brake disc thickness, and 127 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 304
Brake Disc Thickness [mm] : 30
Height [mm] : 120
Bolt Hole Circle Ø [mm] : 192
Centering Diameter [mm] : 127
Number of Holes : 6
  • Vendor APEC
  • SKU DSK2797
  • Barcode 5028906091989
  • MERCEDES-BENZ : 6684230012
  • BORG & BECK : BBD32652
  • BREMBO : 09.8206.10
  • FEBI BILSTEIN : 10920
  • TEXTAR : 93087500
