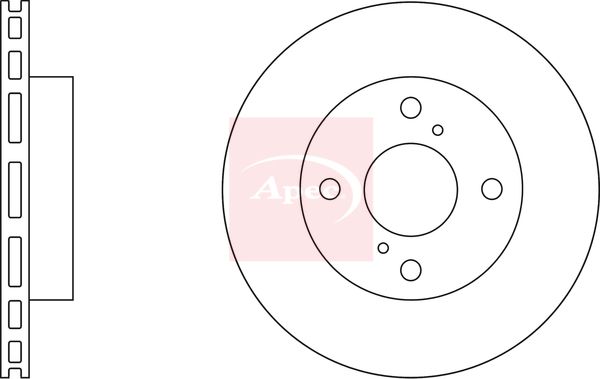

Apec DSK2801 Brake Disc - 1
Apec DSK2801 Brake Disc - 1
APEC

Apec DSK2801 Brake Disc

SKU: DSK2801
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£23.72 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUZUKI
CARRY Platform/Chassis (FD, DA5_T, DA6_T)
Description Cylinder Capacity Horse Power Year
1.3 (DA32T) 1298 CCM 76 HP 10/2000 - 09/2004
CARRY Van (FD)
Description Cylinder Capacity Horse Power Year
1.3 16 V (DA32V) 1298 CCM 79 HP From 03/2000
CARRY Bus
Description Cylinder Capacity Horse Power Year
1.3 1298 CCM 76 HP 03/1999 - 12/2006

The Apec DSK2801 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 231 mm outer diameter, 17 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 231
Brake Disc Thickness [mm] : 17
Height [mm] : 44
Bolt Hole Circle Ø [mm] : 100
Wheel Bolt Bore Diameter [mm] : 13
Centering Diameter [mm] : 60
Number of Holes : 4
Test Mark : 90R-02C 01275/41134
  • Vendor APEC
  • SKU DSK2801
  • Barcode 5028906014483
  • SUZUKI : 5531176A00
  • BLUE PRINT : ADK84319
  • BORG & BECK : BBD4791
  • BOSCH : 0 986 479 R23
  • DELPHI : BG4047
  • FEBI BILSTEIN : 170841
  • MINTEX : MDC1949
  • National : NBD1374
  • TEXTAR : 92179103
