Apec DSK2803 Brake Disc - 1
Apec DSK2803 Brake Disc - 1
APEC

Apec DSK2803 Brake Disc

SKU: DSK2803
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£34.11 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

RENAULT TRUCKS
MASCOTT Platform/Chassis
Description Cylinder Capacity Horse Power Year
130 2800 CCM 125 HP 01/1999 - 06/2004
110 2800 CCM 106 HP 01/1999 - 06/2004
90 2800 CCM 86 HP 01/1999 - 12/2001
140 2800 CCM 140 HP 01/2001 - 06/2004
150.35 (A00300161) 2798 CCM 146 HP 10/2001 - 06/2004
150.35 (A00300164) 2798 CCM 146 HP 10/2001 - 06/2004
120.35 (A00100003, A01100003) 2953 CCM 115 HP 05/2004 - 12/2010
120.55 (A00300005, A01300005) 2953 CCM 115 HP 05/2004 - 12/2010
120.65 (A00500007) 2953 CCM 115 HP 05/2004 - 12/2010
160.35 (A00100013, A01100013) 2953 CCM 156 HP 05/2004 - 12/2010
160.55 (A00300015, A01300015) 2953 CCM 156 HP 05/2004 - 12/2010
160.65 (A00500017, A01500017, B03200017) 2953 CCM 156 HP 05/2004 - 12/2010
150.35 2953 CCM 150 HP 05/2004 - 12/2013
MASCOTT Van
Description Cylinder Capacity Horse Power Year
130.55 2800 CCM 125 HP 01/1999 - 06/2004
130.35 2800 CCM 125 HP 01/1999 - 06/2004
110.50 2800 CCM 106 HP 01/1999 - 06/2004
110.35 2800 CCM 106 HP 01/1999 - 06/2004
90.35 2800 CCM 86 HP 01/1999 - 12/2001
140.35 2800 CCM 140 HP 01/2001 - 06/2004
140.55 2800 CCM 140 HP 01/2001 - 06/2004
150.35 (A02300161) 2798 CCM 146 HP 10/2001 - 06/2004
150.55 (A02300164) 2798 CCM 146 HP 10/2001 - 06/2004
150.65 (A00300166) 2798 CCM 146 HP 10/2001 - 06/2004
120.35 (A02100003) 2953 CCM 115 HP 05/2004 - 10/2010
120.55 (A02300005) 2953 CCM 115 HP 05/2004 - 10/2010
160.35 (A02100013) 2953 CCM 156 HP 05/2004 - 10/2010
160.55 (A02300015) 2953 CCM 156 HP 05/2004 - 10/2010

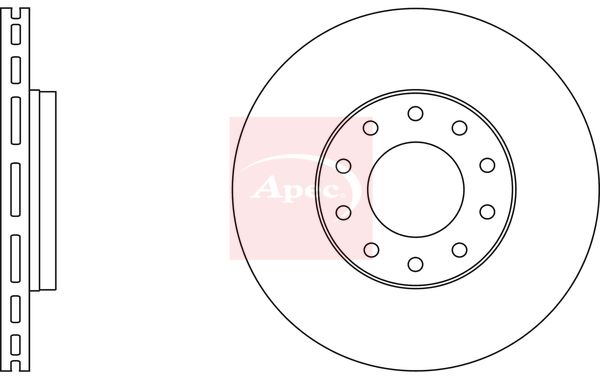

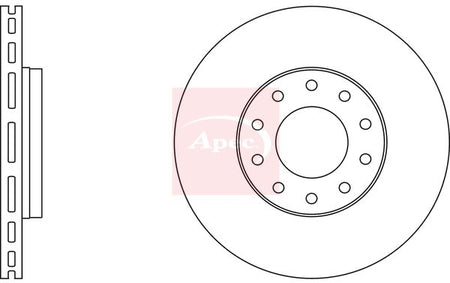

The Apec DSK2803 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 290 mm outer diameter, 22 mm brake disc thickness, and 10 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 290
Brake Disc Thickness [mm] : 22
Height [mm] : 43
Bolt Hole Circle Ø [mm] : 120
Wheel Bolt Bore Diameter [mm] : 10
Centering Diameter [mm] : 102
Number of Holes : 5
  • Vendor APEC
  • SKU DSK2803
  • Barcode 5028906014506
  • RENAULT : 5010260604
  • BOSCH : 0 986 479 343
  • BREMBO : 09.7262.10
  • DELPHI : BG4979C
  • FEBI BILSTEIN : 101731
  • MINTEX : MDC2378
  • TEXTAR : 93117400
  • TRW : DF4330
