Apec DSK2805 Brake Disc - 1
Apec DSK2805 Brake Disc - 1
APEC

Apec DSK2805 Brake Disc

SKU: DSK2805
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£50.02 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT
MASTER II Platform/Chassis (ED/HD/UD)
Description Cylinder Capacity Horse Power Year
3.0 dCi 140 (ED0S, UD0S, HD0S) 2953 CCM 136 HP 10/2003 - 01/2010
MASTER II Van (FD)
Description Cylinder Capacity Horse Power Year
3.0 dCi 140 (FD0T, FD0S, FD2T, FD3S, FD8S) 2953 CCM 136 HP 10/2003 - 10/2006
MASTER PRO Van (FH__)
Description Cylinder Capacity Horse Power Year
dCi 120 (FH0H, FH5H) 2953 CCM 116 HP 06/2005 - 04/2010
dCi 160 (FH0J, FH5J) 2953 CCM 156 HP 05/2004 - 04/2010
MASTER PRO Platform/Chassis (HH__, UH__)
Description Cylinder Capacity Horse Power Year
dCi 120 (HH0H, HH1H, HH6H, HH7H, UH0H, UH1H, UH4H, UH5H,... 2953 CCM 116 HP 06/2005 - 04/2010
RENAULT TRUCKS
MASCOTT Platform/Chassis
Description Cylinder Capacity Horse Power Year
130 2800 CCM 125 HP 01/1999 - 06/2004
110 2800 CCM 106 HP 01/1999 - 06/2004
90 2800 CCM 86 HP 01/1999 - 12/2001
140 2800 CCM 140 HP 01/2001 - 06/2004
150.35 (A00300161) 2798 CCM 146 HP 10/2001 - 06/2004
150.35 (A00300164) 2798 CCM 146 HP 10/2001 - 06/2004
120.35 (A00100003, A01100003) 2953 CCM 115 HP 05/2004 - 12/2010
120.55 (A00300005, A01300005) 2953 CCM 115 HP 05/2004 - 12/2010
120.65 (A00500007) 2953 CCM 115 HP 05/2004 - 12/2010
160.35 (A00100013, A01100013) 2953 CCM 156 HP 05/2004 - 12/2010
160.55 (A00300015, A01300015) 2953 CCM 156 HP 05/2004 - 12/2010
160.65 (A00500017, A01500017, B03200017) 2953 CCM 156 HP 05/2004 - 12/2010
150.35 2953 CCM 150 HP 05/2004 - 12/2013
MASCOTT Van
Description Cylinder Capacity Horse Power Year
130.55 2800 CCM 125 HP 01/1999 - 06/2004
130.35 2800 CCM 125 HP 01/1999 - 06/2004
110.55 2800 CCM 106 HP 01/1999 - 06/2004
110.50 2800 CCM 106 HP 01/1999 - 06/2004
110.35 2800 CCM 106 HP 01/1999 - 06/2004
90.35 2800 CCM 86 HP 01/1999 - 12/2001
140.35 2800 CCM 140 HP 01/2001 - 06/2004
140.55 2800 CCM 140 HP 01/2001 - 06/2004
150.35 (A02300161) 2798 CCM 146 HP 10/2001 - 06/2004
150.55 (A02300164) 2798 CCM 146 HP 10/2001 - 06/2004
150.65 (A00300166) 2798 CCM 146 HP 10/2001 - 06/2004
120.35 (A02100003) 2953 CCM 115 HP 05/2004 - 10/2010
120.55 (A02300005) 2953 CCM 115 HP 05/2004 - 10/2010
160.35 (A02100013) 2953 CCM 156 HP 05/2004 - 10/2010
160.55 (A02300015) 2953 CCM 156 HP 05/2004 - 10/2010

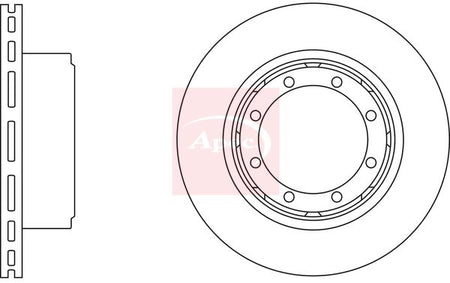

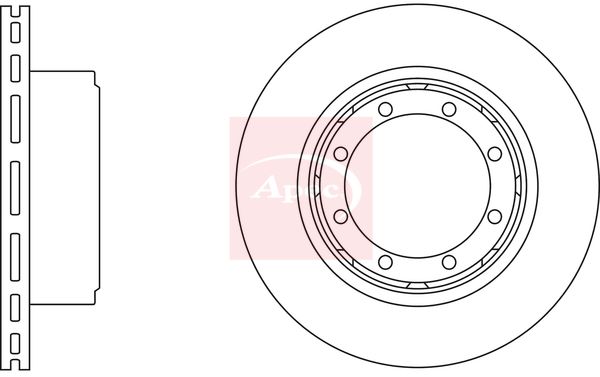

The Apec DSK2805 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 290 mm outer diameter, 22 mm brake disc thickness, and 11 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 290
Brake Disc Thickness [mm] : 22
Height [mm] : 78
Bolt Hole Circle Ø [mm] : 132
Wheel Bolt Bore Diameter [mm] : 11
Centering Diameter [mm] : 115
Number of Holes : 8
Test Mark : 90R-02C01195/34012
  • Vendor APEC
  • SKU DSK2805
  • Barcode 5028906014520
  • RENAULT : 5001864712 5010260609
  • BLUE PRINT : ADBP430002
  • BORG & BECK : BBD32626
  • BOSCH : 0 986 479 610
  • BREMBO : 09.7263.20
  • DELPHI : BG4787
  • FEBI BILSTEIN : 29177
  • MINTEX : MDC2379
  • TEXTAR : 93117600
  • TRW : DF6335S
  • VALEO : 187061
