Apec DSK2806 Brake Disc - 1
Apec DSK2806 Brake Disc - 1
APEC

Apec DSK2806 Brake Disc

SKU: DSK2806
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£55.03 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
RANGER (ER, EQ, R_)
Description Cylinder Capacity Horse Power Year
2.5 TD 4x4 2500 CCM 109 HP 10/1999 - 06/2006
RANGER (ET)
Description Cylinder Capacity Horse Power Year
2.5 TDCi 4x4 2499 CCM 143 HP 05/2006 - 07/2012
3.0 TDCi 4x4 2953 CCM 156 HP 05/2006 - 07/2012
2.5 TDdi 2499 CCM 143 HP 05/2006 - 07/2012
3.0 TDCi 2953 CCM 156 HP 05/2006 - 07/2012
MAZDA
B-SERIE (UN)
Description Cylinder Capacity Horse Power Year
2.5 TD 4WD 2499 CCM 109 HP 06/1999 - 07/2006
2.5 D 4WD 2499 CCM 84 HP 12/2002 - 11/2006
2.5 D 4WD 2499 CCM 83 HP 11/1999 - 12/2001
BT-50 Platform/Chassis (CD, UN)
Description Cylinder Capacity Horse Power Year
2.5 CDVi (UNY0W3) 2500 CCM 143 HP From 12/2006
3.0 CDVi 4x4 (UNY0E3) 2953 CCM 156 HP From 12/2006
BT-50 Pickup (CD, UN)
Description Cylinder Capacity Horse Power Year
2.5 MRZ-CD 4x4 (UNY0W3) 2499 CCM 143 HP 12/2006 - 12/2015
3.0 CDVi 4x4 (UNY0E3) 2953 CCM 156 HP 10/2006 - 12/2015
2.5 MRZ-CD (UNY0W3) 2499 CCM 143 HP 08/2006 - 06/2013

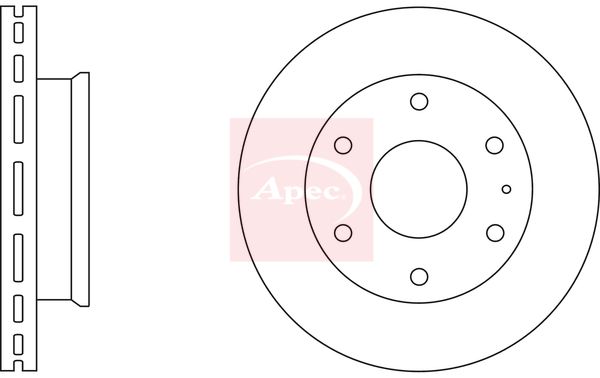

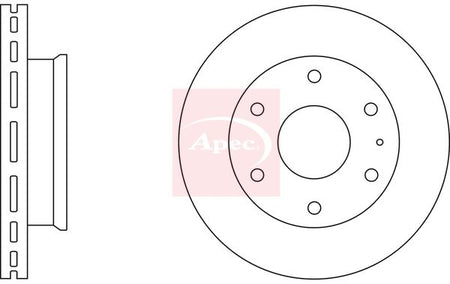

The Apec DSK2806 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 289 mm outer diameter, 28 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 289
Brake Disc Thickness [mm] : 28
Height [mm] : 70
Bolt Hole Circle Ø [mm] : 140
Wheel Bolt Bore Diameter [mm] : 13
Centering Diameter [mm] : 98
Number of Holes : 6
Test Mark : 90R-02C 01275/31730
  • Vendor APEC
  • SKU DSK2806
  • Barcode 5028906014537
  • FORD : 1490412 4429562 6M341027DA
  • MAZDA : UM5133251 UMY133251 UR6133251
  • APEC : SDK6648
  • BLUE PRINT : ADM54377
  • BORG & BECK : BBD4793
  • BOSCH : 0 986 479 711
  • BREMBO : 09.B622.10
  • DELPHI : BG4297
  • Fahren : FBD6648
  • FEBI BILSTEIN : 44104
  • HELLA : 8DD 355 129-181
  • MINTEX : MDC2217
  • NAPA : NBD5637
  • National : NBD1312
  • SKF : VKBD 80538 V1
  • TEXTAR : 92223000
