APEC

Apec DSK2829 Brake Disc

SKU: DSK2829

Your selected vehicle

Only 5 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£54.55 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

ALPHARD / VELLFIRE (_H2_)

Description	Cylinder Capacity	Horse Power	Year
3.5 (GGH20W, GGH20)	3456 CCM	280 HP	04/2008 - 12/2014
3.5 4WD (GGH25W)	3456 CCM	280 HP	04/2008 - 12/2014
2.4 (ANH20W, ANH20)	2362 CCM	170 HP	05/2008 - 12/2014
2.4 4WD (ANH25W)	2362 CCM	170 HP	05/2008 - 12/2014
3.5 (GGH20W)	3456 CCM	275 HP	04/2008 - 12/2014
2.4 (ANH20W)	2362 CCM	167 HP	04/2008 - 12/2014

ALPHARD / VELLFIRE (_H3_)

Description	Cylinder Capacity	Horse Power	Year
3.5 (GGH30W, GGH30)	3456 CCM	275 HP	From 02/2015

PREVIA III (_R2_, _R5_)

Description	Cylinder Capacity	Horse Power	Year
2.4 (ACR50_, ACR50R)	2362 CCM	170 HP	From 10/2005
2.4 Hybrid (AHR20_)	2362 CCM	150 HP	From 05/2012
2.4 Hybrid 4WD (AHR20_, AHR20R)	2362 CCM	150 HP	From 05/2012

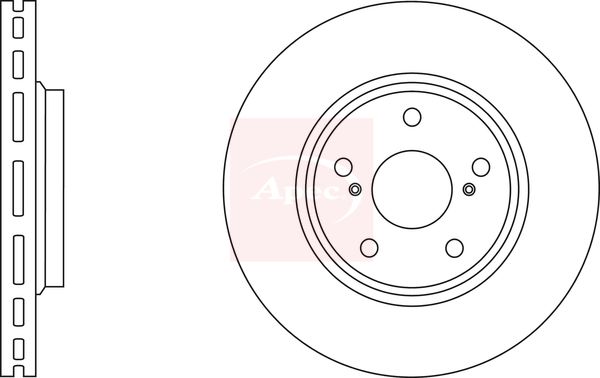

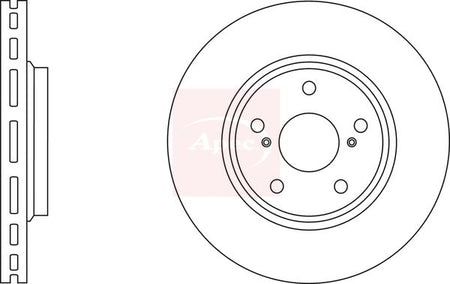

The Apec DSK2829 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 296 mm outer diameter, 28 mm brake disc thickness, and 14 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 296

Brake Disc Thickness [mm] : 28

Height [mm] : 49

Bolt Hole Circle Ø [mm] : 114

Wheel Bolt Bore Diameter [mm] : 14

Centering Diameter [mm] : 62

Number of Holes : 5

Machining : High-carbon

Apec DSK2829 Brake Disc
