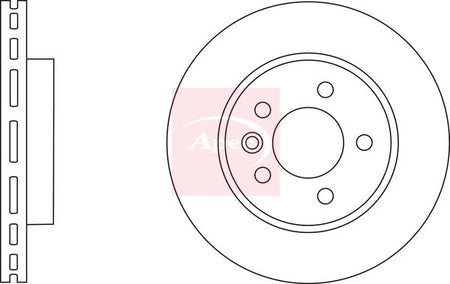

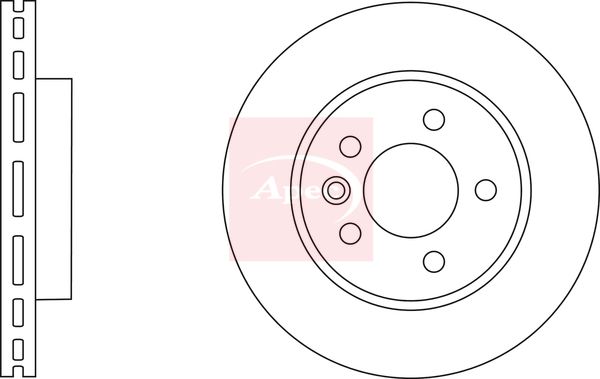

Apec DSK2847 Brake Disc - 1
Apec DSK2847 Brake Disc - 1
APEC

Apec DSK2847 Brake Disc

SKU: DSK2847
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£53.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VW
AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD)
Description Cylinder Capacity Horse Power Year
2.0 TSI 1984 CCM 160 HP 12/2010 - 10/2016
2.0 BiTDI 4motion 1968 CCM 180 HP 11/2011 - 05/2022
2.0 BiTDI 1968 CCM 163 HP 09/2010 - 08/2012
2.0 BiTDI 4motion 1968 CCM 163 HP 09/2010 - 08/2012
2.0 TDI 4motion 1968 CCM 122 HP 09/2010 - 10/2013
2.0 TDI 1968 CCM 122 HP 09/2010 - 10/2013
2.0 BiTDI 1968 CCM 180 HP 11/2011 - 05/2022
2.0 TDI 1968 CCM 140 HP From 07/2012
2.0 TDI 4motion 1968 CCM 140 HP 06/2012 - 05/2022
AMAROK Platform/Chassis (S1B, S6B, S7B)
Description Cylinder Capacity Horse Power Year
2.0 BiTDI 4motion 1968 CCM 180 HP 09/2011 - 07/2019
2.0 TDI 4motion 1968 CCM 140 HP 09/2011 - 10/2016

The Apec DSK2847 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 303 mm outer diameter, 28 mm brake disc thickness, and 17 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 303
Brake Disc Thickness [mm] : 28
Height [mm] : 57
Bolt Hole Circle Ø [mm] : 120
Wheel Bolt Bore Diameter [mm] : 17
Centering Diameter [mm] : 76
Number of Holes : 5
Test Mark : 90R-02C0301/0139
  • Vendor APEC
  • SKU DSK2847
  • Barcode 5028906014988
  • VW : 2H0615301A
  • APEC : SDK6667
  • BLUE PRINT : ADV184354
  • BORG & BECK : BBD5166
  • BOSCH : 0 986 479 154
  • DELPHI : BG4343
  • DELPHI : BG4343C
  • Fahren : FBD6667
  • FEBI BILSTEIN : 36237
  • HELLA : 8DD 355 117-151
  • MEYLE : 115 521 0026/PD
  • MINTEX : MDC2243
  • NAPA : NBD5340
  • National : NBD1767
  • SKF : VKBD 80253 V2
  • TEXTAR : 92228903
  • TEXTAR : 92228905
  • TRW : DF6482
  • VALEO : 197499
  • VALEO : 673416
