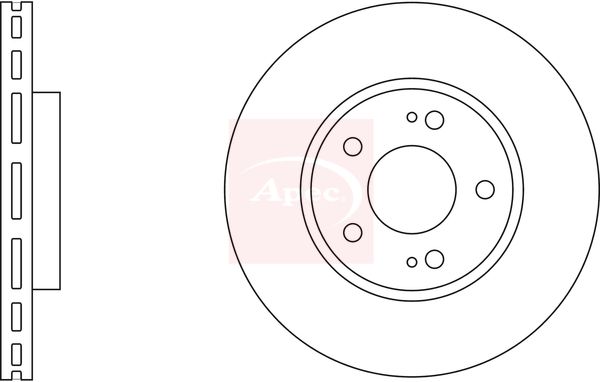

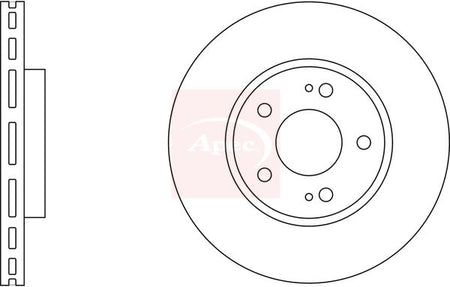

Apec DSK2856 Brake Disc - 1
Apec DSK2856 Brake Disc - 1
APEC

Apec DSK2856 Brake Disc

SKU: DSK2856
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£46.32 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MITSUBISHI
ECLIPSE IV (DK_A)
Description Cylinder Capacity Horse Power Year
2.4 GS 2378 CCM 163 HP 04/2005 - 12/2011
LANCER VII (CS_A, CT_A)
Description Cylinder Capacity Horse Power Year
1.6 (CS3A) 1584 CCM 98 HP 09/2003 - 12/2013
2.0 (CS9A) 1997 CCM 135 HP 12/2003 - 12/2013
1.6 (CS3A) 1584 CCM 105 HP 06/2000 - 12/2007
LANCER VII Estate (CS_W, CT_W)
Description Cylinder Capacity Horse Power Year
1.6 1584 CCM 98 HP 09/2003 - 10/2008
2.0 (CS9W) 1997 CCM 135 HP 09/2003 - 12/2007

The Apec DSK2856 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 276 mm outer diameter, 26 mm brake disc thickness, and 12 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 276
Brake Disc Thickness [mm] : 26
Height [mm] : 46
Bolt Hole Circle Ø [mm] : 114
Wheel Bolt Bore Diameter [mm] : 12
Centering Diameter [mm] : 69
Number of Holes : 5
  • Vendor APEC
  • SKU DSK2856
  • Barcode 5028906016661
  • MITSUBISHI : MR510965 MR510966 MR510967
  • BLUE PRINT : ADC443104
  • BORG & BECK : BBD4622
  • BOSCH : 0 986 479 604
  • BOSCH : 0 986 479 S00
  • BOSCH : 0 986 479 U40
  • DELPHI : BG4147
  • HELLA : 8DD 355 116-311
  • MINTEX : MDC2119
  • National : NBD1817
  • TEXTAR : 92198200
  • TEXTAR : 92198203
