Apec DSK2866 Brake Disc - 1
Apec DSK2866 Brake Disc - 1
APEC

Apec DSK2866 Brake Disc

SKU: DSK2866
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£82.15 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
CLS (C219)
Description Cylinder Capacity Horse Power Year
CLS 350 (219.356) 3498 CCM 272 HP 10/2004 - 12/2010
CLS 500 (219.375) 4966 CCM 306 HP 10/2004 - 12/2010
CLS 350 (219.357) 3498 CCM 292 HP 04/2006 - 12/2010
E-CLASS (W211)
Description Cylinder Capacity Horse Power Year
E 500 (211.070) 4966 CCM 306 HP 03/2002 - 12/2008
E 200 CDI (211.004) 2148 CCM 102 HP 07/2002 - 12/2008
E 200 CDI (211.004) 2148 CCM 122 HP 07/2002 - 12/2008
E 320 CDI (211.026) 3222 CCM 204 HP 11/2002 - 12/2008
E-CLASS T-Model (S211)
Description Cylinder Capacity Horse Power Year
E 500 T (211.270) 4966 CCM 306 HP 10/2003 - 07/2009
E 320 T CDI (211.222) 2987 CCM 224 HP 03/2005 - 07/2009
E 280 T CDI (211.220) 2987 CCM 190 HP 03/2005 - 07/2009
SL (R230)
Description Cylinder Capacity Horse Power Year
500 (230.475) 4966 CCM 306 HP 10/2001 - 01/2012
350 (230.456) 3498 CCM 272 HP 03/2006 - 01/2012
500 (230.471) 5461 CCM 388 HP 03/2006 - 01/2012
350 (230.458) 3498 CCM 316 HP 04/2008 - 01/2012
280 (230.454) 2996 CCM 231 HP 03/2008 - 01/2012
300 (230.454) 2996 CCM 231 HP 04/2009 - 01/2012

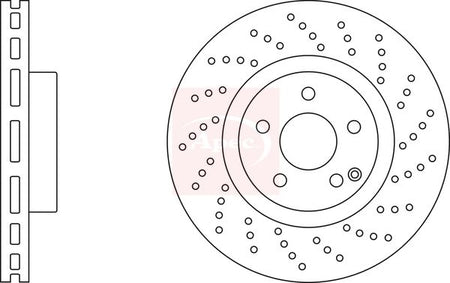

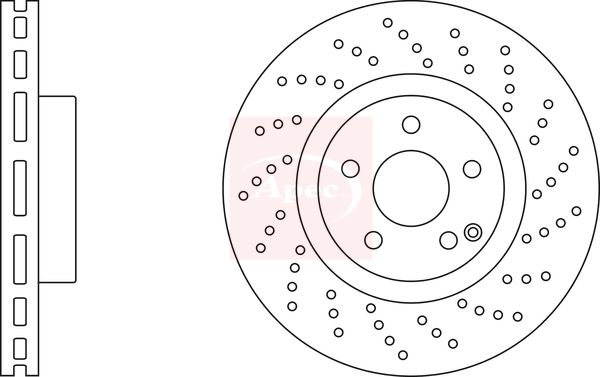

The Apec DSK2866 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records perforated/vented disc construction, 330 mm outer diameter, 32 mm brake disc thickness, and 15 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : perforated/vented
Outer Diameter [mm] : 330
Brake Disc Thickness [mm] : 32
Height [mm] : 64
Bolt Hole Circle Ø [mm] : 112
Wheel Bolt Bore Diameter [mm] : 15
Centering Diameter [mm] : 67
Number of Holes : 5
  • Vendor APEC
  • SKU DSK2866
  • Barcode 5028906016760
  • MERCEDES-BENZ : 2304210512 2304210812 A2304210512 A2304210812
  • BLUE PRINT : ADU174315
  • BORG & BECK : BBD6048S
  • BOSCH : 0 986 479 412
  • BOSCH : 0 986 479 415
  • DELPHI : BG3883
  • FEBI BILSTEIN : 37725
  • HELLA : 8DD 355 109-471
  • MEYLE : 083 521 0040/PD
  • MINTEX : MDC1671
  • National : NBD1278
  • SKF : VKBD 81239 V1
  • TEXTAR : 92120205
  • TEXTAR : 92120207
  • TRW : DF6433S
  • VALEO : 197682
  • VALEO : 673162
