APEC

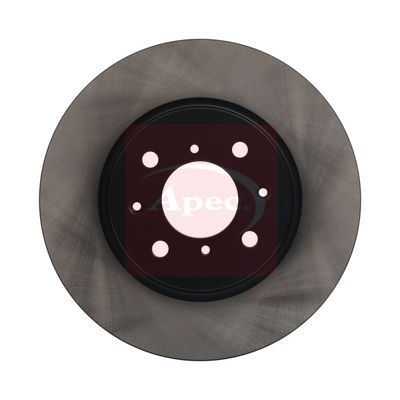

Apec DSK2869 Brake Disc

SKU: DSK2869

Your selected vehicle

In stock

Orders placed by 17:00 are usually dispatched the same working day

£46.15 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUZUKI

SWIFT III (FZ, NZ)

Description	Cylinder Capacity	Horse Power	Year
1.2 (AZH412, ZC72S)	1242 CCM	94 HP	10/2010 - 04/2017
1.2 4x4 (AZH412, ZD72S)	1242 CCM	94 HP	10/2010 - 04/2017
1.3 DDiS (AZG413D, ZC02S, ZC92S)	1248 CCM	75 HP	10/2010 - 04/2017
1.2 (AZG412, ZC72S)	1242 CCM	90 HP	10/2010 - 04/2017
1.2 4x4 (AZG412, ZD72S)	1242 CCM	90 HP	10/2010 - 04/2017
1.2 (AZH412, AZG412, ZC72S)	1242 CCM	91 HP	08/2012 - 04/2017
1.2 4WD (AZH412, AZG412, ZD72S)	1242 CCM	91 HP	08/2012 - 04/2017

The Apec DSK2869 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 256 mm outer diameter, 22 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 256

Brake Disc Thickness [mm] : 22

Height [mm] : 40

Bolt Hole Circle Ø [mm] : 100

Wheel Bolt Bore Diameter [mm] : 13

Centering Diameter [mm] : 60

Number of Holes : 4

Test Mark : 90R-02C0301/0219

APEC : SDK6676
BLUE PRINT : ADK84338
BORG & BECK : BBD5217
BOSCH : 0 986 479 788
DELPHI : BG4340
Fahren : FBD6676
FEBI BILSTEIN : 108497
HELLA : 8DD 355 117-371
MEYLE : 33-15 521 0018/PD
MINTEX : MDC2304
NAPA : NBD5193
National : NBD1802
SKF : VKBD 80228 V2
TEXTAR : 92232803
TRW : DF6232
VALEO : 197506

Apec DSK2869 Brake Disc
