Apec DSK2878 Brake Disc - 1
Apec DSK2878 Brake Disc - 1
APEC

Apec DSK2878 Brake Disc

SKU: DSK2878
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£42.77 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
DYNA Platform/Chassis (KD_, LY_, _Y2_, _U3_, _U4_, _U6_, _U8
Description Cylinder Capacity Horse Power Year
3.0 D4d (KDY221, KDY231, KDY251, KDY261) 2982 CCM 144 HP From 09/2006
3.0 D4d (KDY221, KDY231) 2982 CCM 136 HP From 10/2009
2.5 D4d (KDY220_, KDY230_) 2494 CCM 88 HP From 07/2001
2.5 D4d (KDY230, KDY250, KDY220) 2494 CCM 102 HP From 08/2001
3.0 D4d (KDY261_, KDY251_, KDY231_, KDY221_, KDY221R,... 2982 CCM 109 HP From 09/2006

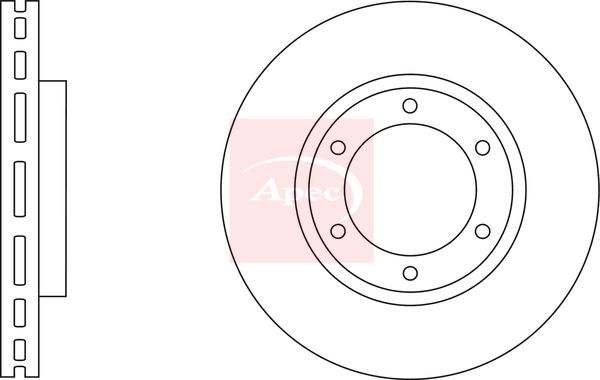

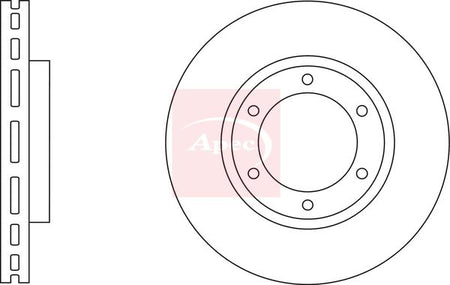

The Apec DSK2878 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 287 mm outer diameter, 28 mm brake disc thickness, and 10 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 287
Brake Disc Thickness [mm] : 28
Height [mm] : 48
Bolt Hole Circle Ø [mm] : 127
Wheel Bolt Bore Diameter [mm] : 10
Centering Diameter [mm] : 100
Number of Holes : 6
Test Mark : 90R-02C 01275/31730
  • Vendor APEC
  • SKU DSK2878
  • Barcode 5028906054779
  • TOYOTA : 4351225060 4351225061
  • BLUE PRINT : ADT343187
  • BORG & BECK : BBD5288
  • DELPHI : BG4209
  • National : NBD2188
