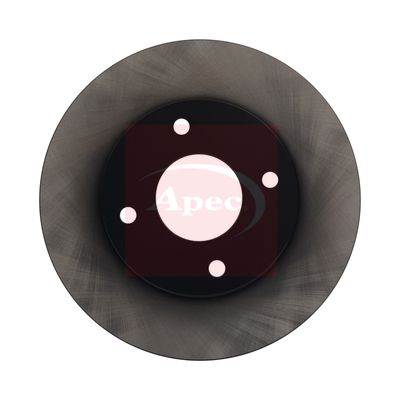

Apec DSK2886 Brake Disc

SKU: DSK2886
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£40.71 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

NISSAN
NV200 Van
Description Cylinder Capacity Horse Power Year
1.5 dCi 90 (M20, M20N, M20M) 1461 CCM 90 HP From 04/2011
1.5 dCi 110 (M20, M20N, M20M) 1461 CCM 110 HP From 04/2011
1.6 16V (VM20, M20N, M20, M20L, M20M) 1598 CCM 110 HP From 02/2010
1.5 dCi 85 (M20, M20N, M20M) 1461 CCM 86 HP From 02/2010
NV200 / EVALIA Bus
Description Cylinder Capacity Horse Power Year
1.5 dCi 90 (M20, M20M) 1461 CCM 90 HP From 04/2011
1.5 dCi 110 (M20, M20M) 1461 CCM 110 HP From 04/2011
1.5 dCi 85 (M20, M20M, M20K, M20KK) 1461 CCM 86 HP From 07/2010

The Apec DSK2886 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 257 mm outer diameter, 26 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 257
Brake Disc Thickness [mm] : 26
Height [mm] : 54
Bolt Hole Circle Ø [mm] : 114
Wheel Bolt Bore Diameter [mm] : 13
Centering Diameter [mm] : 68
Number of Holes : 4
Test Mark : 90R-02C0301/0153
  • Vendor APEC
  • SKU DSK2886
  • Barcode 5028906054854
  • NISSAN : 402063LG0A 402063LG0B 40206JX00A D02063LG0B
  • APEC : SDK6684
  • BLUE PRINT : ADN143150
  • BORG & BECK : BBD5214
  • BOSCH : 0 986 479 535
  • BREMBO : 09.B548.10
  • DELPHI : BG4651C
  • Fahren : FBD6684
  • FEBI BILSTEIN : 108425
  • HELLA : 8DD 355 118-571
  • MEYLE : 36-15 521 0059
  • MINTEX : MDC2495
  • NAPA : NBD5257
  • National : NBD1845
  • SKF : VKBD 80300 V2
  • TEXTAR : 92253103
  • VALEO : 197482
