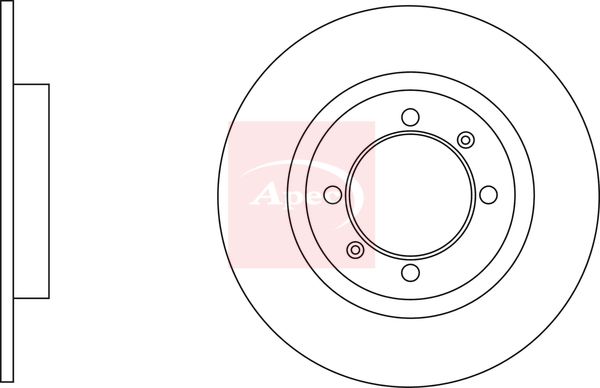

Apec DSK2903 Brake Disc - 1

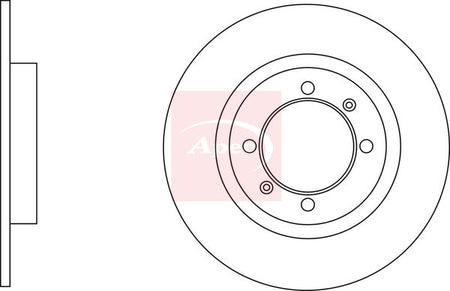

Apec DSK2903 Brake Disc - 1
APEC

Apec DSK2903 Brake Disc

SKU: DSK2903
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£31.49 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

PROTON
GEN 2 (CM_)
Description Cylinder Capacity Horse Power Year
1.3 (CM3L) 1332 CCM 95 HP 06/2004 - 12/2009
1.6 (CM6L) 1597 CCM 110 HP From 06/2004
1.6 LPG 1597 CCM 112 HP From 03/2008
GEN-2 PERSONA Saloon
Description Cylinder Capacity Horse Power Year
1.6 (CM6S) 1597 CCM 112 HP 03/2008 - 07/2016

The Apec DSK2903 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 280 mm outer diameter, 12 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 280
Brake Disc Thickness [mm] : 12
Height [mm] : 41
Bolt Hole Circle Ø [mm] : 114
Wheel Bolt Bore Diameter [mm] : 13
Centering Diameter [mm] : 90
Number of Holes : 4
Test Mark : 90R-02C0722/2585
  • Vendor APEC
  • SKU DSK2903
  • Barcode 5028906055028
  • PROTON : PW823053
  • APEC : SDK6693
  • BLUE PRINT : ADG043162
  • BORG & BECK : BBD5282
  • DELPHI : BG4538
  • DELPHI : BG4538C
  • FEBI BILSTEIN : 170818
