Apec DSK2904 Brake Disc - 1
Apec DSK2904 Brake Disc - 1
APEC

Apec DSK2904 Brake Disc

SKU: DSK2904
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£45.94 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

NISSAN
CABSTAR (F24M, F24W)
Description Cylinder Capacity Horse Power Year
28.11 DCI, 32.11 DCI, 35.11 DCI 2.5 (F24M) 2488 CCM 110 HP 09/2006 - 12/2013
35.13 DCI, 45.13 DCI 2.5 (F24M) 2488 CCM 131 HP 09/2006 - 12/2012
35.14 DCI 3.0 (F24M) 2953 CCM 137 HP 09/2006 - 12/2013
35.15 DCI, 45.15 DCI 3.0 (F24M) 2953 CCM 150 HP 09/2006 - 12/2013
28.12 DCI, 32.12 DCI, 34.12 DCI, 35.12 DCI 2.5 (F24M) 2488 CCM 122 HP 09/2006 - 12/2013
34.110 DCI 2.5 (F24M) 2488 CCM 111 HP 01/2007 - 04/2012
NT400 CABSTAR (F24M)
Description Cylinder Capacity Horse Power Year
28.12, 32.12, 35.12 (F91AN, F24M) 2488 CCM 122 HP From 01/2014
35.14, 45.14 2488 CCM 136 HP From 01/2014
35.15, 45.15 2488 CCM 146 HP From 01/2014

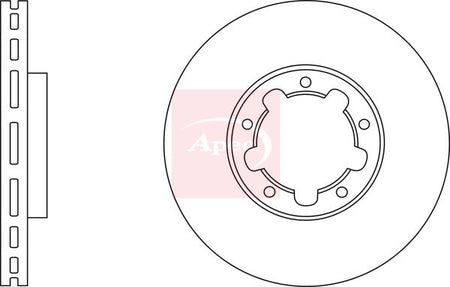

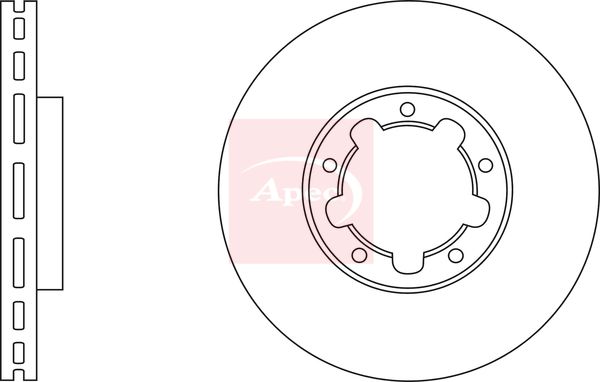

The Apec DSK2904 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 276 mm outer diameter, 28 mm brake disc thickness, and 94 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 276
Brake Disc Thickness [mm] : 28
Height [mm] : 45
Bolt Hole Circle Ø [mm] : 118
Centering Diameter [mm] : 94
Number of Holes : 5
Test Mark : 90R-02C0451/0324
  • Vendor APEC
  • SKU DSK2904
  • Barcode 5028906055035
  • NISSAN : 40206MB600
  • APEC : SDK6694
  • BLUE PRINT : ADN143131
  • BORG & BECK : BBD5232
  • BOSCH : 0 986 479 136
  • BREMBO : 09.B410.10
  • DELPHI : BG4217
  • DELPHI : BG5182C
  • FEBI BILSTEIN : 107998
  • FTE : 9071382
  • FTE : 9081318
  • HELLA : 8DD 355 133-431
  • MEYLE : 36-15 521 0066
  • MINTEX : MDC2985C
  • NAPA : NBD5226
  • National : NBD2139
  • SKF : VKBD 81347 V1
  • TEXTAR : 92324003
  • VALEO : 673673
