Apec DSK2909 Brake Disc - 1
Apec DSK2909 Brake Disc - 1
APEC

Apec DSK2909 Brake Disc

SKU: DSK2909
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£45.34 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

NISSAN
CABSTAR E (TL_, VL_)
Description Cylinder Capacity Horse Power Year
105.35, 110.35, 110.45 (TL0) 2953 CCM 106 HP 10/1998 - 10/2006
120.35, 120.45 (TL0) 2953 CCM 120 HP 10/1998 - 10/2006
125.35, 125.45 (TL0, VL0) 2953 CCM 125 HP 10/1998 - 10/2006
28.10, 32.10 2953 CCM 105 HP 01/2004 - 11/2006
CABSTAR (F24M, F24W)
Description Cylinder Capacity Horse Power Year
28.11 DCI, 32.11 DCI, 35.11 DCI 2.5 (F24M) 2488 CCM 110 HP 09/2006 - 12/2013
35.13 DCI, 45.13 DCI 2.5 (F24M) 2488 CCM 131 HP 09/2006 - 12/2012
35.14 DCI 3.0 (F24M) 2953 CCM 137 HP 09/2006 - 12/2013
35.15 DCI, 45.15 DCI 3.0 (F24M) 2953 CCM 150 HP 09/2006 - 12/2013
35.14 DCI, 45.14 DCI 2.5 (F24M) 2488 CCM 136 HP 09/2006 - 12/2013
34.110 DCI 2.5 (F24M) 2488 CCM 111 HP 01/2007 - 04/2012
NT400 CABSTAR (F24M)
Description Cylinder Capacity Horse Power Year
28.12, 32.12, 35.12 (F91AN, F24M) 2488 CCM 122 HP From 01/2014
35.14, 45.14 2488 CCM 136 HP From 01/2014
35.15, 45.15 2488 CCM 146 HP From 01/2014
35.13 2953 CCM 130 HP From 09/2016
35.15, 45.15 2953 CCM 150 HP From 09/2016

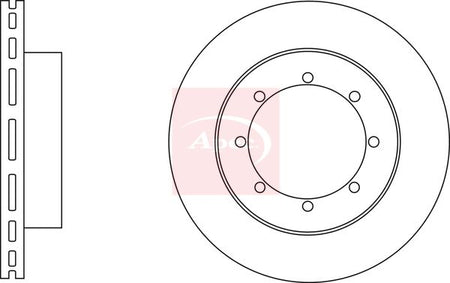

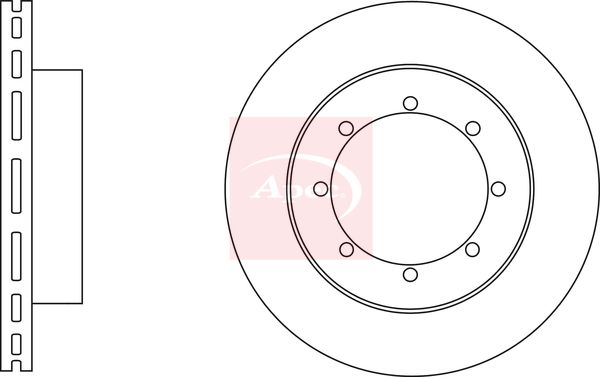

The Apec DSK2909 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 290 mm outer diameter, 22 mm brake disc thickness, and 11 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 290
Brake Disc Thickness [mm] : 22
Height [mm] : 78
Bolt Hole Circle Ø [mm] : 127
Wheel Bolt Bore Diameter [mm] : 11
Centering Diameter [mm] : 110
Number of Holes : 8
  • Vendor APEC
  • SKU DSK2909
  • Barcode 5028906055080
  • NISSAN : 43206LE02A 43206MA50A 432079X100
  • BLUE PRINT : ADN143132
  • BORG & BECK : BBD5233
  • BOSCH : 0 986 479 V18
  • BREMBO : 09.7263.30
  • DELPHI : BG5091C
  • FEBI BILSTEIN : 108615
  • MINTEX : MDC2975C
  • TEXTAR : 92322303
  • VALEO : 673577
