Apec DSK2934 Brake Disc - 1
Apec DSK2934 Brake Disc - 1
APEC

Apec DSK2934 Brake Disc

SKU: DSK2934
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£40.48 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MERCEDES-BENZ
SPRINTER 2-t Platform/Chassis (B901, B902)
Description Cylinder Capacity Horse Power Year
212 D (901.421, 902.412) 2874 CCM 122 HP 02/1995 - 04/2000
208 D (901.311, 901.312, 901.321, 902.311, 902.312,... 2299 CCM 79 HP 01/1995 - 04/2000
214 (902.011, 902.012, 902.611, 902.612) 2295 CCM 143 HP 02/1995 - 05/2006
210 D (901.421, 902.412) 2874 CCM 102 HP 01/1997 - 04/2000
208 D (901.311, 901.312, 901.321, 902.311, 902.312,... 2299 CCM 82 HP 09/1996 - 04/2000
208 CDI (901.611, 901.612, 901.621, 902.611, 902.612,... 2148 CCM 82 HP 04/2000 - 05/2006
211 CDI (901.621, 902.611, 902.612, 902.621, 902.622) 2148 CCM 109 HP 04/2000 - 05/2006
213 CDI (901.621, 902.611, 902.612, 902.621, 902.622) 2148 CCM 129 HP 04/2000 - 05/2006
216 CDI (902.611, 902.612, 902.621, 902.622) 2685 CCM 156 HP 04/2000 - 05/2006
214 NGT (902.012, 902.611, 902.612) 2295 CCM 129 HP 02/1995 - 05/2006
SPRINTER 3-t Platform/Chassis (B903)
Description Cylinder Capacity Horse Power Year
308 D 2.3 (903.311, 903.312, 903.322) 2299 CCM 79 HP 02/1995 - 04/2000
312 D 2.9 (903.411, 903.412, 903.421, 903.422, 903.423) 2874 CCM 122 HP 02/1995 - 04/2000
314 (903.011, 903.012, 903.013, 903.022, 903.612,... 2295 CCM 143 HP 02/1995 - 05/2006
310 D 2.9 (903.411, 903.412, 903.413, 903.421, 903.422,... 2874 CCM 102 HP 01/1997 - 04/2000
308 D 2.3 (903.311, 903.322) 2299 CCM 82 HP 11/1996 - 04/2000
308 CDI (903.611, 903.612, 903.613, 903.621, 903.622,... 2148 CCM 82 HP 04/2000 - 05/2006
311 CDI (903.611, 903.612, 903.613, 903.621, 903.622,... 2148 CCM 109 HP 04/2000 - 05/2006
313 CDI (903.611, 903.612, 903.621, 903.622, 903.623,... 2148 CCM 129 HP 04/2000 - 05/2006
316 CDI (903.611, 903.612, 903.613, 903.621, 903.622,... 2685 CCM 156 HP 04/2000 - 05/2006
314 NGT (903.611, 903.612, 903.613, 903.622, 903.012,... 2295 CCM 129 HP 02/1995 - 05/2006
314 4x4 (903.612, 903.613, 903.622) 2295 CCM 143 HP 02/1995 - 05/2006
313 CDI 4x4 (903.612, 903.613, 903.622, 903.623) 2148 CCM 129 HP 04/2000 - 05/2006
316 CDI 4x4 (903.612, 903.613, 903.622, 903.623) 2685 CCM 156 HP 08/2002 - 05/2006
312 D 2.9 (903.411, 903.412, 903.413, 903.421, 903.422,... 2874 CCM 116 HP 12/1998 - 09/2001
SPRINTER 2-t Bus (B901, B902)
Description Cylinder Capacity Horse Power Year
208 D (901.371, 902.371, 902.372) 2299 CCM 79 HP 02/1995 - 04/2000
212 D (902.471, 902.472) 2874 CCM 122 HP 02/1995 - 04/2000
214 (902.071, 902.072, 902.671, 902.672) 2295 CCM 143 HP 02/1995 - 05/2006
210 D (902.471, 902.472) 2874 CCM 102 HP 03/1997 - 04/2000
208 CDI (901.671, 902.671, 902.672) 2148 CCM 82 HP 04/2000 - 05/2006
211 CDI (902.671, 902.672) 2148 CCM 109 HP 04/2000 - 05/2006
213 CDI (902.671, 902.672) 2148 CCM 129 HP 04/2000 - 05/2006
216 CDI (902.671, 902.672) 2685 CCM 156 HP 04/2000 - 05/2006
214 NGT (902.072, 902.671, 902.672) 2295 CCM 129 HP 02/1995 - 05/2006
SPRINTER 2-t Van (B901, B902)
Description Cylinder Capacity Horse Power Year
210 D (901.461, 901.462, 902.461, 902.462) 2874 CCM 102 HP 01/1997 - 04/2000
208 D (901.361, 901.362, 902.361, 902.362) 2299 CCM 79 HP 02/1995 - 04/2000
212 D (901.461, 901.462, 902.461, 902.462) 2874 CCM 122 HP 02/1995 - 04/2000
214 (901.061, 901.062, 901.661, 901.662, 902.061,... 2295 CCM 143 HP 02/1995 - 05/2006
208 D (901.361, 901.362, 902.361, 902.362) 2299 CCM 82 HP 10/1996 - 04/2000
208 CDI (901.661, 901.662, 902.661, 902.662) 2148 CCM 82 HP 04/2000 - 05/2006
211 CDI (901.661, 901.662, 902.661, 902.662) 2148 CCM 109 HP 04/2000 - 05/2006
213 CDI (901.661, 901.662, 902.661, 902.662) 2148 CCM 129 HP 04/2000 - 05/2006
216 CDI (902.661, 902.662) 2685 CCM 156 HP 04/2000 - 05/2006
214 NGT (901.661, 902.061, 902.062, 902.661, 902.662) 2295 CCM 129 HP 02/1995 - 05/2006
SPRINTER 3-t Bus (B903)
Description Cylinder Capacity Horse Power Year
312 D 2.9 (903.471, 903.472, 903.473) 2874 CCM 122 HP 02/1995 - 04/2000
308 D (903.372, 903.373) 2299 CCM 79 HP 02/1995 - 04/2000
314 (903.071, 903.072, 903.073, 903.671, 903.672,... 2295 CCM 143 HP 02/1995 - 05/2006
308 CDI (903.671, 903.672, 903.673) 2148 CCM 82 HP 04/2000 - 05/2006
311 CDI (903.671, 903.672) 2148 CCM 109 HP 04/2000 - 05/2006
313 CDI (903.671, 903.672, 903.673) 2148 CCM 129 HP 04/2000 - 05/2006
316 CDI (903.671, 903.672, 903.673) 2685 CCM 156 HP 04/2000 - 05/2006
314 NGT (903.072, 903.671, 903.672) 2295 CCM 129 HP 02/1995 - 05/2006
313 CDI 4x4 (903.672, 903.673) 2148 CCM 129 HP 08/2002 - 05/2006
314 4x4 (903.672, 903.673) 2295 CCM 143 HP 02/1995 - 05/2006
316 CDI 4x4 (903.672, 903.673) 2685 CCM 156 HP 08/2002 - 05/2006
310 D (903.471, 903.472, 903.473) 2874 CCM 102 HP 01/1997 - 12/1999
SPRINTER 3-t Van (B903)
Description Cylinder Capacity Horse Power Year
308 D 2.3 (903.361, 903.362, 903.363) 2299 CCM 79 HP 02/1995 - 04/2000
310 D 2.9 (903.461, 903.462, 903.463) 2874 CCM 102 HP 02/1995 - 04/2000
314 (903.061, 903.062, 903.063, 903.661, 903.662) 2295 CCM 143 HP 02/1995 - 05/2006
312 D 2.9 (903.461, 903.462, 903.463) 2874 CCM 122 HP 02/1995 - 04/2000
308 CDI (903.661, 903.662, 903.663) 2148 CCM 82 HP 04/2000 - 05/2006
311 CDI (903.661, 903.662, 903.663) 2148 CCM 109 HP 04/2000 - 05/2006
313 CDI (903.663, 903.662, 903.661) 2148 CCM 129 HP 04/2000 - 05/2006
316 CDI (903.661, 903.662, 903.663) 2685 CCM 156 HP 04/2000 - 05/2006
314 NGT (903.661, 903.061, 903.062, 903.063, 903.662) 2295 CCM 129 HP 02/1995 - 05/2006
314 4x4 (903.661, 903.662, 903.663) 2295 CCM 143 HP 02/1995 - 05/2006
313 CDI 4x4 (903.662, 903.663) 2148 CCM 129 HP 08/2002 - 05/2006
316 CDI 4x4 (903.662, 903.663) 2685 CCM 156 HP 02/2001 - 05/2006
SPRINTER 4-t Platform/Chassis (B904)
Description Cylinder Capacity Horse Power Year
414 (904.012, 904.013, 904.612, 904.613) 2295 CCM 143 HP 02/1995 - 05/2006
414 4x4 (904.012, 904.013, 904.612, 904.613) 2295 CCM 143 HP 05/1997 - 05/2006
408 CDI 2148 CCM 82 HP 04/2000 - 05/2006
411 CDI 2148 CCM 109 HP 04/2000 - 05/2006
411 CDI 4x4 2148 CCM 109 HP 04/2000 - 05/2006
413 CDI 2148 CCM 129 HP 04/2000 - 05/2006
413 CDI 4x4 2148 CCM 129 HP 04/2000 - 05/2006
408 D 2299 CCM 79 HP 02/1996 - 05/2006
410 D 2874 CCM 102 HP 02/1996 - 05/2006
412 D 2874 CCM 115 HP 02/1996 - 05/2006
412 D 2874 CCM 122 HP 02/1996 - 05/2006
SPRINTER 4-t Van (B904)
Description Cylinder Capacity Horse Power Year
414 (904.062, 904.063, 904.662, 904.663) 2295 CCM 143 HP 02/1996 - 05/2006
414 4x4 (904.062, 904.063, 904.662, 904.663) 2295 CCM 143 HP 05/1997 - 05/2006
408 CDI 2148 CCM 82 HP 04/2000 - 05/2006
411 CDI 2148 CCM 109 HP 04/2000 - 05/2006
413 CDI 2148 CCM 129 HP 04/2000 - 05/2006
411 CDI 4x4 2148 CCM 109 HP 04/2000 - 05/2006
413 CDI 4x4 2148 CCM 129 HP 04/2000 - 05/2006
408 D 2299 CCM 79 HP 02/1996 - 05/2006
410 D 2874 CCM 102 HP 02/1996 - 05/2006
412 D 2874 CCM 115 HP 02/1996 - 05/2006
412 D 2874 CCM 122 HP 02/1996 - 05/2006
SPRINTER 4-t Bus (B904)
Description Cylinder Capacity Horse Power Year
414 (904.662, 904.663) 2295 CCM 143 HP 02/1996 - 05/2006
408 CDI (904.662, 904.663) 2148 CCM 82 HP 04/2000 - 05/2006
411 CDI (904.662, 904.663) 2148 CCM 109 HP 04/2000 - 05/2006
413 CDI (904.663, 904.662) 2148 CCM 129 HP 04/2000 - 05/2006

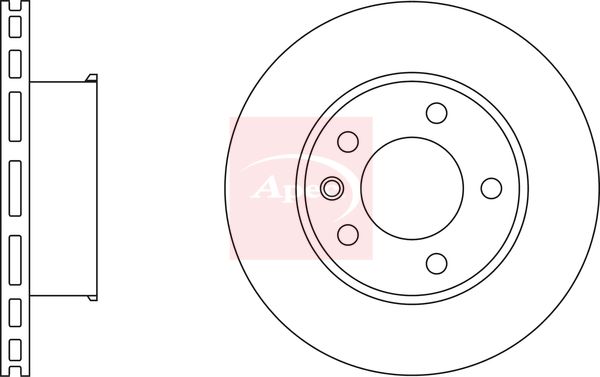

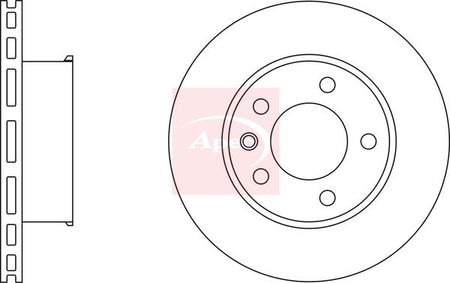

The Apec DSK2934 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 285 mm outer diameter, 22 mm brake disc thickness, and 15 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 285
Brake Disc Thickness [mm] : 22
Height [mm] : 72
Bolt Hole Circle Ø [mm] : 130
Wheel Bolt Bore Diameter [mm] : 15
Centering Diameter [mm] : 85
Number of Holes : 5
Test Mark : 90R-02C01195/29057
  • Vendor APEC
  • SKU DSK2934
  • Barcode 5028906058630
  • MERCEDES-BENZ : 9034210012 9034210112
  • BLUE PRINT : ADU174391
  • BORG & BECK : BBD5954S
  • BOSCH : 0 986 479 212
  • BREMBO : 09.A922.14
  • DELPHI : BG4067
  • HELLA : 8DD 355 118-051
  • MEYLE : 015 521 0003
  • MINTEX : MDC2127
  • National : NBD1594
  • SKF : VKBD 81234 V1
  • TEXTAR : 93127800
  • TRW : DF6194S
  • VALEO : 673435
