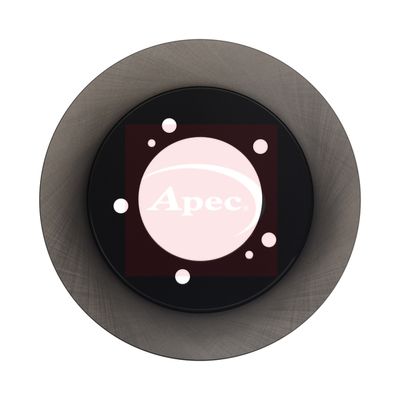

Apec DSK2941 Brake Disc - 1
Apec DSK2941 Brake Disc - 2
Apec DSK2941 Brake Disc - 1
Apec DSK2941 Brake Disc - 2
APEC

Apec DSK2941 Brake Disc

SKU: DSK2941
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£27.63 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

SUZUKI
JIMNY Open Off-Road Vehicle (SN)
Description Cylinder Capacity Horse Power Year
1.3 16V 4WD (SN413, JB33) 1298 CCM 80 HP From 09/1998
1.3 (SN413) 1328 CCM 86 HP From 08/2004
1.3 4WD (SN413) 1328 CCM 86 HP From 03/2013
JIMNY Closed Off-Road Vehicle (SN)
Description Cylinder Capacity Horse Power Year
1.3 16V 4WD (SN413, JB43) 1328 CCM 82 HP From 02/2001
1.3 16V 4x4 (SN413, JB43) 1328 CCM 86 HP From 08/2005
1.3 4WD (SN413) 1328 CCM 85 HP From 05/2014
JIMNY Closed Off-Road Vehicle (A6G)
Description Cylinder Capacity Horse Power Year
1.5 AllGrip (JB74W, JB74V, A6G415) 1462 CCM 102 HP From 07/2018
1.5 AllGrip (JB74W) 1462 CCM 108 HP From 01/2019
1.5 XL AllGrip (JC74W) 1462 CCM 102 HP From 01/2023

The Apec DSK2941 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 290 mm outer diameter, 10 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 290
Brake Disc Thickness [mm] : 10
Height [mm] : 46
Bolt Hole Circle Ø [mm] : 140
Wheel Bolt Bore Diameter [mm] : 13
Centering Diameter [mm] : 108
Number of Holes : 5
Test Mark : 90R-02C0270/0018
  • Vendor APEC
  • SKU DSK2941
  • Barcode 5028906058708
  • SUZUKI : 5521176J00 5521176J01 5521176J02
  • APEC : SDK6713
  • BLUE PRINT : ADK84325
  • BORG & BECK : BBD5251
  • BOSCH : 0 986 479 B09
  • BREMBO : 08.B304.10
  • DELPHI : BG4289
  • Fahren : FBD6713
  • FEBI BILSTEIN : 108403
  • HELLA : 8DD 355 117-941
  • MINTEX : MDC2337
  • NAPA : NBD5642
  • National : NBD1794
  • SKF : VKBD 80468 S2
  • TEXTAR : 92237300
