APEC

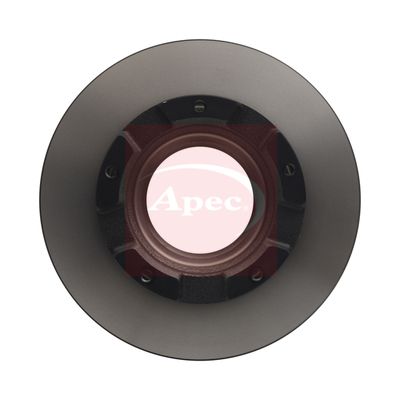

Apec DSK2977 Brake Disc

SKU: DSK2977
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£55.43 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
TOURNEO CUSTOM V362 Bus (F3)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 09/2012 - 12/2015
2.2 TDCi 2198 CCM 125 HP 09/2012 - 12/2015
2.2 TDCi 2198 CCM 155 HP 09/2012 - 12/2015
2.0 EcoBlue 1995 CCM 105 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 185 HP 05/2019 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 185 HP 05/2019 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 130 HP 05/2019 - 12/2023
1.0 EcoBoost PHEV 996 CCM 125 HP 04/2020 - 12/2023
2.0 EcoBlue 1995 CCM 150 HP 01/2022 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 150 HP 01/2022 - 12/2023
TRANSIT CUSTOM V362 Bus (F3)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 09/2012 - 06/2016
2.2 TDCi 2198 CCM 125 HP 09/2012 - 12/2015
2.2 TDCi 2198 CCM 155 HP 09/2012 - 12/2015
2.0 EcoBlue 1995 CCM 105 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 185 HP 05/2019 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 185 HP 05/2019 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 130 HP 05/2019 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 170 HP 05/2019 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 105 HP 05/2019 - 12/2023
1.0 EcoBoost PHEV 996 CCM 125 HP 04/2020 - 12/2023
2.0 EcoBlue 1995 CCM 150 HP 01/2022 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 150 HP 01/2022 - 12/2023
TRANSIT CUSTOM V362 Van (FY, FZ)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 09/2012 - 06/2016
2.2 TDCi 2198 CCM 125 HP 09/2012 - 04/2016
2.2 TDCi 2198 CCM 155 HP 09/2012 - 12/2015
2.0 EcoBlue 1995 CCM 105 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 130 HP 05/2019 - 12/2023
1.0 EcoBoost PHEV 996 CCM 125 HP 04/2020 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 170 HP 05/2019 - 12/2023
2.0 EcoBlue 1995 CCM 185 HP 05/2019 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 185 HP 05/2019 - 12/2023
TRANSIT V363 Platform/Chassis (FED, FFD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 155 HP 08/2013 - 12/2018
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024
TRANSIT V363 Bus (FAD, FBD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 155 HP 12/2014 - 12/2018
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024
2.0 EcoBlue mHEV 1995 CCM 130 HP From 05/2019
2.0 EcoBlue mHEV 1995 CCM 170 HP 05/2019 - 06/2024
TRANSIT V363 Van (FCD, FDD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024

The Apec DSK2977 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 288 mm outer diameter, 16 mm brake disc thickness, and 120 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 288
Brake Disc Thickness [mm] : 16
Supplementary Article/Supplementary Info 2 : with ABS sensor ring
Height [mm] : 69
Bolt Hole Circle Ø [mm] : 160
Centering Diameter [mm] : 120
Number of Holes : 5
  • Vendor APEC
  • SKU DSK2977
  • Barcode 5028906062705
  • FORD : 1764283 2013002 2021562 2409102 2698855 BK212A097BA BK21-2A097-FA
  • APEC : SDK6736
  • BLUE PRINT : ADBP430019
  • BLUE PRINT : ADF124349
  • BORG & BECK : BBD6067S
  • BOSCH : 0 986 479 A50
  • BOSCH : 0 986 479 H68
  • DELPHI : BG4673
  • Fahren : FBD6736
  • FEBI BILSTEIN : 104494
  • FEBI BILSTEIN : 171451
  • FTE : 9071226
  • FTE : 9081044
  • HELLA : 8DD 355 120-181
  • MEYLE : 715 523 0024/PD
  • MINTEX : MDC2949C
  • NAPA : NBD5447
  • National : NBD1796
  • National : NBD1988
  • SKF : VKBD 90258 S1
  • TEXTAR : 92316903
  • VALEO : 197666
  • VALEO : 672967
