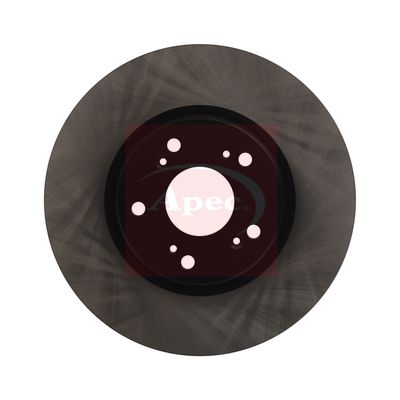

Apec DSK3004 Brake Disc

SKU: DSK3004
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£43.63 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HONDA
CIVIC IX (FK)
Description Cylinder Capacity Horse Power Year
1.8 i-VTEC (FK2) 1798 CCM 141 HP 02/2012 - 12/2016
2.2 i-DTEC (FK3) 2199 CCM 150 HP 02/2012 - 12/2016
1.6 i-DTEC (FK3) 1597 CCM 120 HP 02/2013 - 12/2016
CIVIC IX Tourer (FK)
Description Cylinder Capacity Horse Power Year
1.6 i-DTEC (FK3) 1597 CCM 120 HP 01/2014 - 12/2016
1.8 i-VTEC (FK2) 1798 CCM 141 HP 01/2014 - 12/2016
CIVIC X Saloon (FC_)
Description Cylinder Capacity Horse Power Year
1.5 VTEC (FC1) 1498 CCM 182 HP 08/2016 - 12/2022
1.6 i-VTEC (FC5) 1597 CCM 125 HP 09/2016 - 12/2022
1.6 i-DTEC (FC8) 1597 CCM 120 HP 05/2018 - 12/2022
1.6 i-VTEC LPG 1597 CCM 125 HP 01/2019 - 12/2022
CIVIC X Hatchback (FC_, FK_)
Description Cylinder Capacity Horse Power Year
1.5 VTEC (FK7) 1498 CCM 182 HP 02/2017 - 12/2022
1.6 i-DTEC (FK9) 1597 CCM 120 HP 01/2018 - 12/2022

The Apec DSK3004 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 293 mm outer diameter, 25 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 293
Brake Disc Thickness [mm] : 25
Height [mm] : 46
Bolt Hole Circle Ø [mm] : 114
Wheel Bolt Bore Diameter [mm] : 13
Centering Diameter [mm] : 64
Number of Holes : 5
Test Mark : 90R-02C0301/0180
  • Vendor APEC
  • SKU DSK3004
  • Barcode 5028906063160
  • HONDA : 45251TGNE00 45251TV2E00 45251TV2E01 45251TV2E02
  • APEC : SDK6752
  • BLUE PRINT : ADH243122
  • BORG & BECK : BBD5320
  • BOSCH : 0 986 479 B02
  • DELPHI : BG4698C
  • Fahren : FBD6752
  • FEBI BILSTEIN : 108477
  • FTE : 9071324
  • FTE : 9081130
  • HELLA : 8DD 355 119-571
  • MEYLE : 31-15 521 0059
  • MINTEX : MDC2535
  • NAPA : NBD5230
  • National : NBD1862
  • SKF : VKBD 80289 V2
  • TEXTAR : 92257303
  • TRW : DF6689
  • VALEO : 673358
