APEC

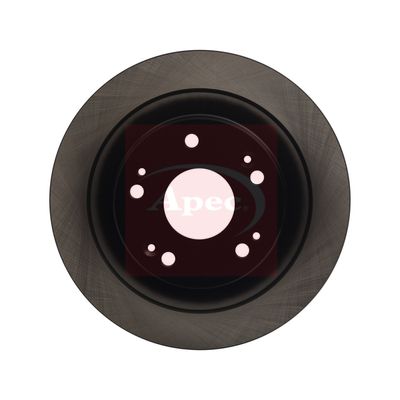

Apec DSK3005 Brake Disc

SKU: DSK3005

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£19.78 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HONDA

CIVIC IX (FK)

Description	Cylinder Capacity	Horse Power	Year
1.4 i-VTEC (FK1)	1339 CCM	99 HP	02/2012 - 12/2016
1.8 i-VTEC (FK2)	1798 CCM	141 HP	02/2012 - 12/2016
2.2 i-DTEC (FK3)	2199 CCM	150 HP	02/2012 - 12/2016
1.6 i-DTEC (FK3)	1597 CCM	120 HP	02/2013 - 12/2016

CIVIC IX Tourer (FK)

Description	Cylinder Capacity	Horse Power	Year
1.6 i-DTEC (FK3)	1597 CCM	120 HP	01/2014 - 12/2016
1.8 i-VTEC (FK2)	1798 CCM	141 HP	01/2014 - 12/2016

The Apec DSK3005 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 276 mm outer diameter, 10 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : solid

Outer Diameter [mm] : 276

Brake Disc Thickness [mm] : 10

Height [mm] : 32

Bolt Hole Circle Ø [mm] : 114

Wheel Bolt Bore Diameter [mm] : 13

Centering Diameter [mm] : 64

Number of Holes : 5

Test Mark : 90R-02C0270/0251

APEC : SDK6753
BLUE PRINT : ADH243123
BORG & BECK : BBD5321
BOSCH : 0 986 479 A92
DELPHI : BG4773C
Fahren : FBD6753
FEBI BILSTEIN : 108479
FTE : 9072641
FTE : 9082254
HELLA : 8DD 355 118-351
MEYLE : 31-15 523 0062
MINTEX : MDC2483
NAPA : NBD5648
National : NBD1863
SKF : VKBD 90318 S2
TEXTAR : 92252603
TRW : DF6526

Apec DSK3005 Brake Disc
