Apec DSK3010 Brake Disc - 1
Apec DSK3010 Brake Disc - 1
APEC

Apec DSK3010 Brake Disc

SKU: DSK3010
Your selected vehicle
Out of stock
Out of Stock
£29.13 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA
CX-5 (KE, GH)
Description Cylinder Capacity Horse Power Year
2.0 (KEEFW) 1998 CCM 165 HP 11/2011 - 02/2017
2.2 D (KE2FW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE2AW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE102) 2191 CCM 175 HP 04/2012 - 02/2017
CX-5 (KF)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 165 HP From 05/2017
2.0 AWD 1998 CCM 160 HP From 05/2017
2.2 D (KF6W) 2191 CCM 150 HP 05/2017 - 12/2024
2.2 D AWD (KFGW) 2191 CCM 150 HP 05/2017 - 12/2024
2.2 D AWD (KF4W2) 2191 CCM 175 HP 05/2017 - 02/2018
2.2 D AWD 2191 CCM 188 HP From 03/2018
2.2 D AWD 2191 CCM 184 HP From 06/2018
2.0 AWD 1998 CCM 165 HP From 06/2018
2.0 1998 CCM 150 HP From 03/2018
2.0 AWD 1998 CCM 150 HP From 03/2018
2.5 2488 CCM 194 HP 03/2019 - 11/2022
2.0 SKYACTIV-G 1998 CCM 163 HP From 03/2018
2.0 SKYACTIV-G AWD 1998 CCM 163 HP From 03/2018
2.2 SKYACTIV-D 2191 CCM 184 HP From 02/2021

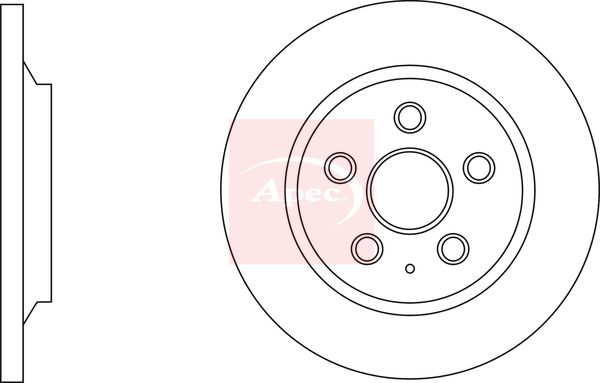

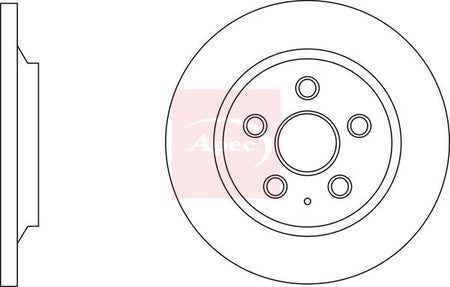

The Apec DSK3010 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 303 mm outer diameter, 10 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 303
Brake Disc Thickness [mm] : 10
Height [mm] : 39
Bolt Hole Circle Ø [mm] : 114
Wheel Bolt Bore Diameter [mm] : 13
Centering Diameter [mm] : 68
Number of Holes : 5
Test Mark : 90R-02C 01275/31252
  • Vendor APEC
  • SKU DSK3010
  • Barcode 5028906063221
  • MAZDA : K01126251 K01126251A K01126251B
  • APEC : SDK6755
  • BLUE PRINT : ADM543124
  • BORG & BECK : BBD5303
  • BOSCH : 0 986 479 C28
  • BOSCH : 0 986 479 V04
  • DELPHI : BG4567
  • DELPHI : BG4567C
  • Fahren : FBD6755
  • FEBI BILSTEIN : 108430
  • HELLA : 8DD 355 118-541
  • MEYLE : 35-15 523 0017/PD
  • MINTEX : MDC2388
  • NAPA : NBD5177
  • National : NBD1970
  • SKF : VKBD 91061 S2
  • TEXTAR : 92242703
  • VALEO : 197505
