Apec DSK3017 Brake Disc - 1
Apec DSK3017 Brake Disc - 1
APEC

Apec DSK3017 Brake Disc

SKU: DSK3017
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£28.46 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HYUNDAI
ix35 (LM, EL, ELH)
Description Cylinder Capacity Horse Power Year
Fuel Cell 136 HP 09/2014 - 12/2015
KIA
OPTIMA (FSGDS6B)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 170 HP 03/2012 - 12/2015
1.7 CRDi 1685 CCM 136 HP 03/2012 - 12/2015
2.0 CVVT Hybrid 1999 CCM 190 HP 12/2012 - 12/2015
OPTIMA (JF)
Description Cylinder Capacity Horse Power Year
2.0 CVVL 1999 CCM 163 HP 09/2015 - 12/2019

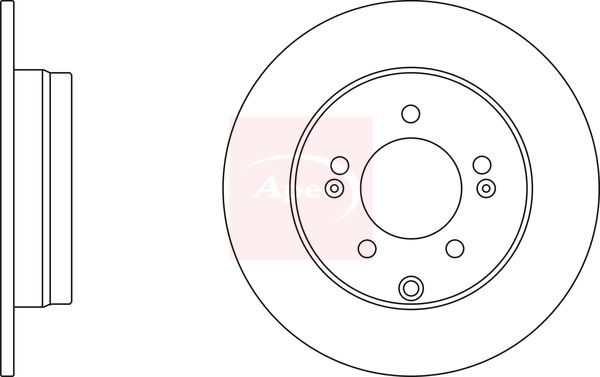

The Apec DSK3017 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 284 mm outer diameter, 10 mm brake disc thickness, and 12 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 284
Brake Disc Thickness [mm] : 10
Height [mm] : 55
Bolt Hole Circle Ø [mm] : 114
Wheel Bolt Bore Diameter [mm] : 12
Centering Diameter [mm] : 76
Number of Holes : 5
Test Mark : 90R-02C0302/0146
  • Vendor APEC
  • SKU DSK3017
  • Barcode 5028906063290
  • HYUNDAI : 584113S100 S584113K100 S584113K110
  • BLUE PRINT : ADG043197
  • BORG & BECK : BBD4525
  • BORG & BECK : BBD5417
  • BOSCH : 0 986 479 A45
  • BOSCH : 0 986 479 T49
  • DELPHI : BG3721
  • FEBI BILSTEIN : 170819
  • HELLA : 8DD 355 128-841
  • MEYLE : 37-15 523 0016
  • MINTEX : MDC2013
  • SKF : VKBD 90507 S2
  • TEXTAR : 92166600
  • VALEO : 197693
