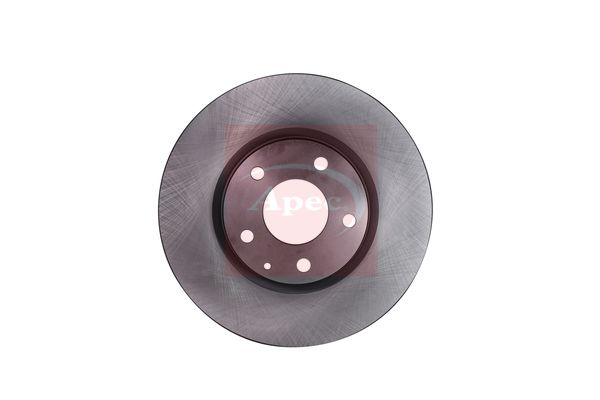

Apec DSK3023 Brake Disc

SKU: DSK3023
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£49.03 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

MAZDA
6 Estate (GJ, GL)
Description Cylinder Capacity Horse Power Year
2.2 D (GJ2FW, GJ692) 2191 CCM 175 HP 08/2012 - 02/2018
2.0 (GJEFW) 1998 CCM 146 HP From 01/2013
2.0 (GJEFW) 1998 CCM 165 HP From 01/2013
2.2 D 2191 CCM 150 HP 10/2012 - 12/2020
2.2 D AWD 2191 CCM 150 HP 12/2012 - 12/2020
2.5 2488 CCM 194 HP From 03/2018
6 Saloon (GJ, GL)
Description Cylinder Capacity Horse Power Year
2.2 D (GJ2FP, GJ1021, GJ1022, GL1021) 2191 CCM 175 HP From 12/2012
2.0 (GJ2, GL2, GL6) 1998 CCM 146 HP From 01/2013
2.0 (GJEFP) 1998 CCM 165 HP From 01/2013
2.2 D (GJ2FP) 2191 CCM 150 HP 12/2012 - 11/2020
2.0 1998 CCM 150 HP 12/2012 - 02/2018
2.5 2488 CCM 194 HP From 03/2018
CX-5 (KE, GH)
Description Cylinder Capacity Horse Power Year
2.0 (KEEFW) 1998 CCM 165 HP 11/2011 - 02/2017
2.2 D (KE2FW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE2AW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE102) 2191 CCM 175 HP 04/2012 - 02/2017

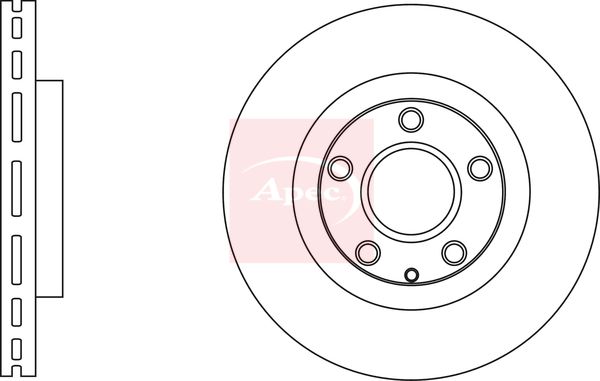

The Apec DSK3023 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 297 mm outer diameter, 28 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 297
Brake Disc Thickness [mm] : 28
Height [mm] : 51
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 68
Number of Holes : 5
Machining : High-carbon
Test Mark : 90R-02C0703/2561
  • Vendor APEC
  • SKU DSK3023
  • Barcode 5028906063351
  • MAZDA : GHP933251A GHR133251 GHR133251A K01133251A K01133251B
  • APEC : SDK6763
  • BLUE PRINT : ADM543123
  • BORG & BECK : BBD5302
  • BOSCH : 0 986 479 B15
  • DELPHI : BG4562
  • DELPHI : BG4562C
  • Fahren : FBD6763
  • FEBI BILSTEIN : 108417
  • HELLA : 8DD 355 119-581
  • MEYLE : 35-15 521 0025/PD
  • MINTEX : MDC2536
  • NAPA : NBD5210
  • National : NBD1835
  • SKF : VKBD 80147 V2
  • TEXTAR : 92257403
  • TEXTAR : 92257405
  • VALEO : 197504
