Apec DSK3026 Brake Disc - 1
Apec DSK3026 Brake Disc - 1
APEC

Apec DSK3026 Brake Disc

SKU: DSK3026
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£34.75 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CHEVROLET
AVEO Saloon (T300)
Description Cylinder Capacity Horse Power Year
1.2 1229 CCM 86 HP From 03/2011
1.4 1398 CCM 100 HP From 07/2011
1.2 1229 CCM 69 HP From 03/2011
1.3 D 1248 CCM 75 HP 07/2011 - 12/2015
1.3 D 1248 CCM 95 HP 07/2011 - 12/2015
1.2 LPG 1229 CCM 86 HP 11/2012 - 12/2015
AVEO Hatchback (T300)
Description Cylinder Capacity Horse Power Year
1.2 1229 CCM 69 HP From 03/2011
1.2 1229 CCM 86 HP From 03/2011
1.4 1398 CCM 101 HP From 03/2011
1.3 D 1248 CCM 75 HP 07/2011 - 12/2015
1.3 D 1248 CCM 95 HP 07/2011 - 12/2015
1.2 LPG 1229 CCM 86 HP 11/2012 - 12/2015

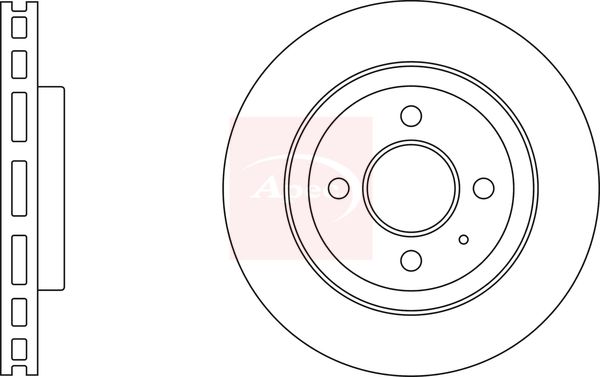

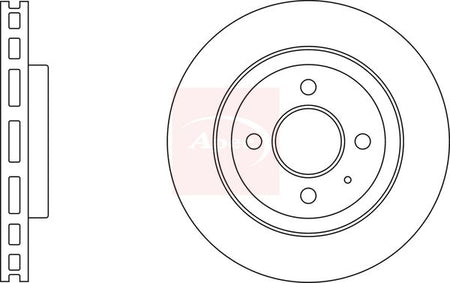

The Apec DSK3026 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 256 mm outer diameter, 24 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 256
Brake Disc Thickness [mm] : 24
Height [mm] : 45
Bolt Hole Circle Ø [mm] : 100
Wheel Bolt Bore Diameter [mm] : 13
Centering Diameter [mm] : 60
Number of Holes : 4
Test Mark : 90R-02C0301/0216
  • Vendor APEC
  • SKU DSK3026
  • Barcode 5028906063382
  • CHEVROLET : 13502001
  • BLUE PRINT : ADG043174
  • BORG & BECK : BBD5249
  • BOSCH : 0 986 479 A54
  • BREMBO : 09.D426.11
  • DELPHI : BG4671C
  • FEBI BILSTEIN : 108618
  • HELLA : 8DD 355 119-351
  • MEYLE : 29-15 521 0010
  • MINTEX : MDC2514
  • National : NBD2010
  • TEXTAR : 92241400
  • TRW : DF6254
