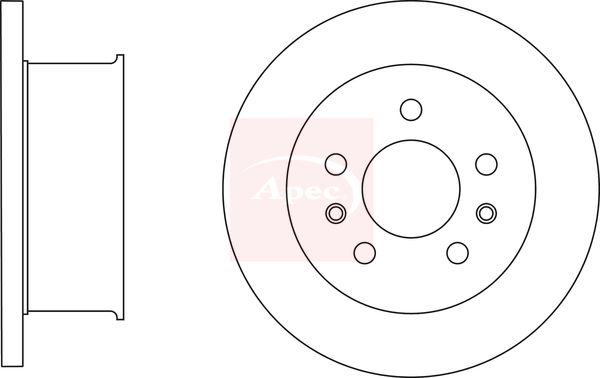

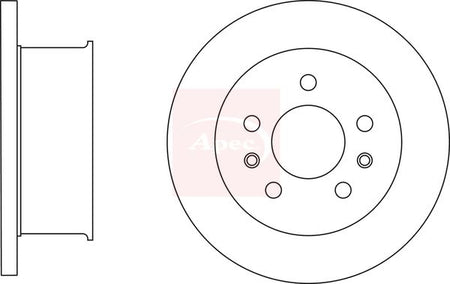

Apec DSK3036 Brake Disc - 1
Apec DSK3036 Brake Disc - 1
APEC

Apec DSK3036 Brake Disc

SKU: DSK3036
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£39.08 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

VW
TRANSPORTER Mk II Bus (22, 23, 24)
Description Cylinder Capacity Horse Power Year
1.6 1584 CCM 50 HP 08/1970 - 04/1979
2.0 1970 CCM 70 HP 08/1975 - 04/1979
TRANSPORTER Mk II Van (21, 23)
Description Cylinder Capacity Horse Power Year
1.6 1584 CCM 50 HP 08/1970 - 07/1979
2.0 1970 CCM 69 HP 08/1976 - 07/1979

The Apec DSK3036 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 278 mm outer diameter, 13 mm brake disc thickness, and 16 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 278
Brake Disc Thickness [mm] : 13
Height [mm] : 86
Bolt Hole Circle Ø [mm] : 112
Wheel Bolt Bore Diameter [mm] : 16
Centering Diameter [mm] : 66
Number of Holes : 5
Test Mark : 90R-02C0270/0310
  • Vendor APEC
  • SKU DSK3036
  • Barcode 5028906063481
  • VW : 211615301B 241407615J
  • BREMBO : 08.2536.10
  • DELPHI : BG2160
  • MINTEX : MDC1174
  • National : NBD567
