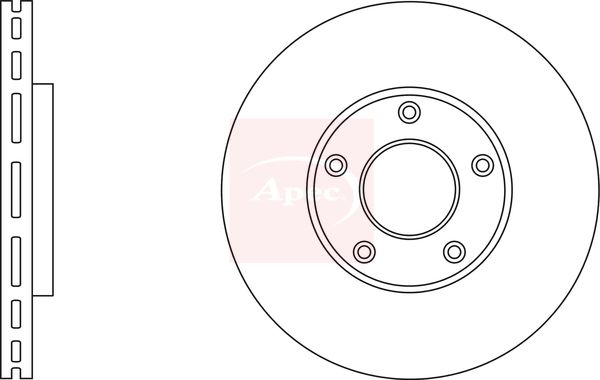

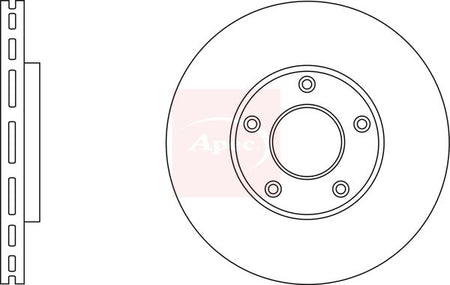

Apec DSK3052 Brake Disc - 1
Apec DSK3052 Brake Disc - 1
APEC

Apec DSK3052 Brake Disc

SKU: DSK3052
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£38.88 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

NISSAN
LEAF (ZE0)
Description Cylinder Capacity Horse Power Year
Electric 109 HP 11/2010 - 12/2017
LEAF (ZE1)
Description Cylinder Capacity Horse Power Year
Electric 150 HP From 08/2017
Electric 218 HP From 01/2019
NV200 Van
Description Cylinder Capacity Horse Power Year
e-NV (ME0N) 109 HP From 05/2014
NV200 / EVALIA Bus
Description Cylinder Capacity Horse Power Year
e-NV (ME0M) 109 HP From 07/2014

The Apec DSK3052 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 283 mm outer diameter, 28 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 283
Brake Disc Thickness [mm] : 28
Height [mm] : 44
Bolt Hole Circle Ø [mm] : 114
Wheel Bolt Bore Diameter [mm] : 13
Centering Diameter [mm] : 68
Number of Holes : 5
Machining : High-carbon
  • Vendor APEC
  • SKU DSK3052
  • Barcode 5028906063641
  • NISSAN : 402063NA0A 402063NL0A 402063NL0B 40206CY00A NIS179
  • BLUE PRINT : ADN143167
  • BORG & BECK : BBD5384
  • BOSCH : 0 986 479 091
  • DELPHI : BG4678C
  • FEBI BILSTEIN : 108686
  • HELLA : 8DD 355 125-071
  • MEYLE : 36-15 521 0060/PD
  • MINTEX : MDC2732
  • National : NBD1867
  • TEXTAR : 92280103
  • VALEO : 672680
