Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs

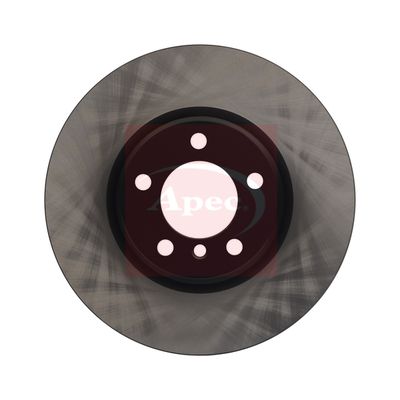

Apec DSK3100 Brake Disc - 1
Apec DSK3100 Brake Disc - 2
Apec DSK3100 Brake Disc - 1
Apec DSK3100 Brake Disc - 2
APEC

Apec DSK3100 Brake Disc

SKU: DSK3100
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£64.11 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
2 Coupe (F22, F87)
Description Cylinder Capacity Horse Power Year
228 i 1997 CCM 245 HP 07/2014 - 06/2016
2 Convertible (F23)
Description Cylinder Capacity Horse Power Year
228 i 1997 CCM 245 HP 11/2014 - 06/2016
230 i 1998 CCM 252 HP 07/2016 - 06/2021
3 (F30, F80)
Description Cylinder Capacity Horse Power Year
328 i 1997 CCM 245 HP 11/2011 - 10/2018
328 i xDrive 1997 CCM 245 HP 07/2012 - 08/2016
3 Gran Turismo (F34)
Description Cylinder Capacity Horse Power Year
325 d 1995 CCM 211 HP 07/2013 - 06/2016
328 i 1997 CCM 245 HP 03/2013 - 06/2016
328 i xDrive 1997 CCM 245 HP 07/2013 - 06/2016
325 d 1995 CCM 218 HP 07/2013 - 06/2016
330 d xDrive 2993 CCM 258 HP From 03/2014
330 d 2993 CCM 258 HP From 03/2014
3 Touring (F31)
Description Cylinder Capacity Horse Power Year
328 i 1997 CCM 245 HP 07/2012 - 06/2015
330 d 2993 CCM 258 HP 07/2012 - 06/2019
325 d 1995 CCM 218 HP 03/2013 - 02/2016
328 i xDrive 1997 CCM 245 HP 03/2013 - 06/2016
330 d xDrive 2993 CCM 258 HP 03/2013 - 06/2019
4 Coupe (F32, F82)
Description Cylinder Capacity Horse Power Year
430 d 2993 CCM 258 HP 11/2013 - 06/2020
428 i 1997 CCM 245 HP 07/2013 - 02/2017
428 i xDrive 1997 CCM 245 HP 07/2013 - 02/2016
430 d xDrive 2993 CCM 258 HP 03/2014 - 06/2020
425 d 1995 CCM 218 HP 03/2014 - 02/2016
4 Convertible (F33, F83)
Description Cylinder Capacity Horse Power Year
428 i 1997 CCM 245 HP 11/2013 - 02/2017
428 i xDrive 1997 CCM 245 HP 03/2014 - 02/2016
425 d 1995 CCM 218 HP 07/2014 - 02/2016
430 d 2993 CCM 258 HP 07/2014 - 07/2020
430 d 2993 CCM 286 HP 07/2014 - 07/2020
4 Gran Coupe (F36)
Description Cylinder Capacity Horse Power Year
428 i xDrive 1997 CCM 245 HP 03/2014 - 02/2016
430 d 2993 CCM 258 HP 07/2014 - 12/2020
430 d xDrive 2993 CCM 258 HP 07/2014 - 12/2020
430 d 2993 CCM 286 HP 07/2014 - 12/2020
430 d xDrive 2993 CCM 286 HP 07/2014 - 12/2020

The Apec DSK3100 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 330 mm outer diameter, 24 mm brake disc thickness, and 17 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 330
Brake Disc Thickness [mm] : 24
Height [mm] : 73
Bolt Hole Circle Ø [mm] : 120
Wheel Bolt Bore Diameter [mm] : 17
Centering Diameter [mm] : 79
Number of Holes : 5
  • Vendor APEC
  • SKU DSK3100
  • Barcode 5028906093471
  • BMW : 34116792221
  • APEC : SDK6931
  • BLUE PRINT : ADB114339
  • BORG & BECK : BBD6010S
  • BOSCH : 0 986 479 A06
  • DELPHI : BG4458C
  • Fahren : FBD6931
  • FEBI BILSTEIN : 43956
  • HELLA : 8DD 355 119-561
  • HELLA : 8DD 355 129-651
  • MEYLE : 383 521 0016/PD
  • MINTEX : MDC2534
  • NAPA : NBD5099
  • National : NBD1549
  • SKF : VKBD 80448 V1
  • TEXTAR : 92242005
  • VALEO : 197791
