APEC

Apec DSK3106 Brake Disc

SKU: DSK3106

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£114.29 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW

3 (F30, F80)

Description	Cylinder Capacity	Horse Power	Year
328 i	1997 CCM	245 HP	11/2011 - 10/2018
335 d xDrive	2993 CCM	313 HP	07/2013 - 10/2018
328 i xDrive	1997 CCM	245 HP	07/2012 - 08/2016
335 i xDrive	2979 CCM	306 HP	07/2012 - 07/2015

3 Gran Turismo (F34)

Description	Cylinder Capacity	Horse Power	Year
325 d	1995 CCM	211 HP	07/2013 - 06/2016
328 i	1997 CCM	245 HP	03/2013 - 06/2016
335 i	2979 CCM	306 HP	03/2013 - 06/2016
328 i xDrive	1997 CCM	245 HP	07/2013 - 06/2016
335 i xDrive	2979 CCM	306 HP	07/2013 - 06/2016
325 d	1995 CCM	218 HP	07/2013 - 06/2016
330 d xDrive	2993 CCM	258 HP	From 03/2014
330 d	2993 CCM	258 HP	From 03/2014
335 d xDrive	2993 CCM	313 HP	From 03/2014

3 Touring (F31)

Description	Cylinder Capacity	Horse Power	Year
328 i	1997 CCM	245 HP	07/2012 - 06/2015
325 d	1995 CCM	218 HP	03/2013 - 02/2016
335 i xDrive	2979 CCM	306 HP	03/2013 - 06/2015
328 i xDrive	1997 CCM	245 HP	03/2013 - 06/2016

4 Coupe (F32, F82)

Description	Cylinder Capacity	Horse Power	Year
435 d xDrive	2993 CCM	313 HP	11/2013 - 06/2020
430 d	2993 CCM	258 HP	11/2013 - 06/2020
428 i	1997 CCM	245 HP	07/2013 - 02/2017
428 i xDrive	1997 CCM	245 HP	07/2013 - 02/2016
435 i	2979 CCM	306 HP	07/2013 - 02/2016
435 i xDrive	2979 CCM	306 HP	07/2013 - 02/2016
430 d xDrive	2993 CCM	258 HP	03/2014 - 06/2020
425 d	1995 CCM	218 HP	03/2014 - 02/2016
435 i	2979 CCM	340 HP	07/2013 - 02/2016
435 i xDrive	2979 CCM	340 HP	07/2013 - 02/2016

4 Convertible (F33, F83)

Description	Cylinder Capacity	Horse Power	Year
435 i	2979 CCM	306 HP	11/2013 - 02/2016
428 i	1997 CCM	245 HP	11/2013 - 02/2017
428 i xDrive	1997 CCM	245 HP	03/2014 - 02/2016
435 i xDrive	2979 CCM	306 HP	07/2014 - 02/2016
425 d	1995 CCM	218 HP	07/2014 - 02/2016
430 d	2993 CCM	258 HP	07/2014 - 07/2020
435 d xDrive	2993 CCM	313 HP	07/2014 - 07/2020
430 d	2993 CCM	286 HP	07/2014 - 07/2020
435 i xDrive	2979 CCM	340 HP	07/2014 - 02/2016
435 i	2979 CCM	340 HP	11/2013 - 02/2016

4 Gran Coupe (F36)

Description	Cylinder Capacity	Horse Power	Year
435 i	2979 CCM	306 HP	03/2014 - 02/2016
428 i	1997 CCM	245 HP	03/2014 - 06/2016
428 i xDrive	1997 CCM	245 HP	03/2014 - 02/2016
435 i xDrive	2979 CCM	306 HP	07/2014 - 02/2016
430 d	2993 CCM	258 HP	07/2014 - 12/2020
430 d xDrive	2993 CCM	258 HP	07/2014 - 12/2020
435 d xDrive	2993 CCM	313 HP	07/2014 - 12/2020
430 d	2993 CCM	286 HP	07/2014 - 12/2020
430 d xDrive	2993 CCM	286 HP	07/2014 - 12/2020
435 i	2979 CCM	340 HP	03/2014 - 02/2016

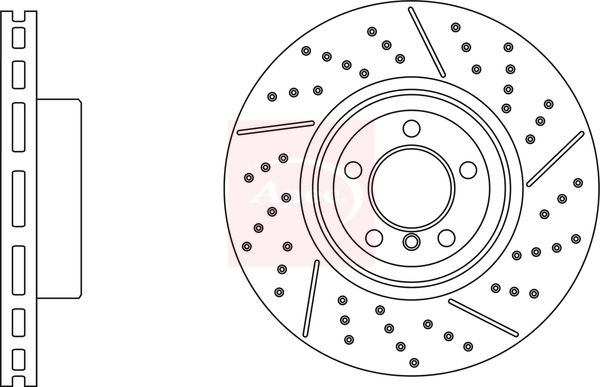

The Apec DSK3106 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records drilled dimples, slotted, and Vented disc construction, 370 mm outer diameter, 30 mm brake disc thickness, and 17 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Drilled dimples

Brake Disc Type : slotted

Brake Disc Type : Vented

Outer Diameter [mm] : 370

Brake Disc Thickness [mm] : 30

Height [mm] : 73

Bolt Hole Circle Ø [mm] : 120

Wheel Bolt Bore Diameter [mm] : 17

Centering Diameter [mm] : 79

Number of Holes : 5

Machining : High-carbon

BLUE PRINT : ADB114380
BORG & BECK : BBD6168S
BORG & BECK : BBD7007S
BOSCH : 0 986 479 E10
BREMBO : 09.C394.13
DELPHI : BG9320BC
DELPHI : BG9320C
FEBI BILSTEIN : 105720
HELLA : 8DD 355 120-771
National : NBD2145
National : NBD2145B
SKF : VKBD 80282 V1
TEXTAR : 92265425

Apec DSK3106 Brake Disc
