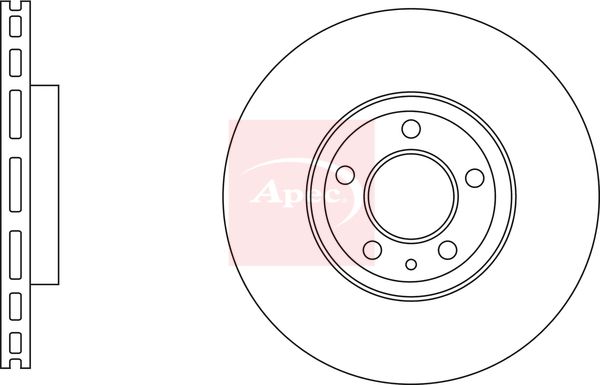

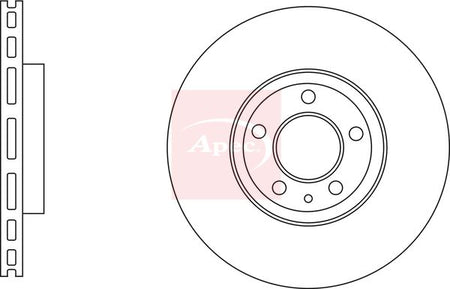

Apec DSK3119 Brake Disc - 1
Apec DSK3119 Brake Disc - 1
APEC

Apec DSK3119 Brake Disc

SKU: DSK3119
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£58.18 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
MONDEO V Saloon (CD)
Description Cylinder Capacity Horse Power Year
2.0 EcoBoost 1999 CCM 240 HP From 05/2015
2.0 Hybrid 1999 CCM 177 HP From 09/2014
2.0 Hybrid 1999 CCM 190 HP From 09/2014
2.0 EcoBoost 1999 CCM 203 HP From 05/2015
2.0 TDCi 1998 CCM 180 HP From 05/2015
2.0 EcoBoost 1999 CCM 199 HP From 05/2015
2.5 2489 CCM 149 HP From 05/2015
2.0 TDCi 4x4 1998 CCM 180 HP From 05/2015
2.0 TDCi Bi-Turbo 1998 CCM 210 HP From 05/2015
2.0 Hybrid 1999 CCM 190 HP From 08/2014
1.0 EcoBoost 998 CCM 125 HP From 02/2015
1.5 EcoBoost 1499 CCM 160 HP From 09/2014
1.5 TDCi 1499 CCM 120 HP From 03/2015
2.0 TDCi 1998 CCM 150 HP From 09/2014
2.0 TDCi 4x4 1998 CCM 150 HP From 09/2014
MONDEO V Turnier (CF)
Description Cylinder Capacity Horse Power Year
1.5 EcoBoost 1499 CCM 160 HP From 09/2014
2.0 EcoBoost 1999 CCM 203 HP From 09/2014
2.0 EcoBoost 1999 CCM 240 HP From 09/2014
1.6 TDCi 1560 CCM 115 HP From 09/2014
2.0 TDCi 1998 CCM 150 HP From 09/2014
2.0 TDCi 1998 CCM 180 HP From 09/2014
1.0 EcoBoost 998 CCM 125 HP From 02/2015
1.5 TDCi 1499 CCM 120 HP From 03/2015
2.0 TDCi Bi-Turbo 1998 CCM 210 HP From 03/2015
2.0 TDCi 4x4 1998 CCM 150 HP From 02/2015
2.0 TDCi 4x4 1998 CCM 180 HP From 02/2015
1.5 EcoBoost 1499 CCM 165 HP From 05/2018
2.0 EcoBlue 1995 CCM 120 HP From 01/2019
2.0 EcoBlue 1995 CCM 150 HP From 01/2019
2.0 EcoBlue 1995 CCM 190 HP From 01/2019
MONDEO V Hatchback (CE)
Description Cylinder Capacity Horse Power Year
1.5 EcoBoost 1499 CCM 160 HP From 09/2014
2.0 EcoBoost 1999 CCM 203 HP From 09/2014
2.0 EcoBoost 1999 CCM 240 HP From 09/2014
1.6 TDCi 1560 CCM 115 HP From 09/2014
2.0 TDCi 1998 CCM 150 HP From 09/2014
2.0 TDCi 1998 CCM 180 HP From 09/2014
1.0 EcoBoost 998 CCM 125 HP From 02/2015
1.5 TDCi 1499 CCM 120 HP From 03/2015
2.0 TDCi Bi-Turbo 1998 CCM 210 HP From 03/2015
2.0 TDCi 4x4 1998 CCM 150 HP From 02/2015
2.0 TDCi 4x4 1998 CCM 180 HP From 02/2015
1.5 EcoBoost 1499 CCM 165 HP From 05/2018
2.0 EcoBlue 1995 CCM 120 HP From 01/2019
2.0 EcoBlue 1995 CCM 150 HP From 01/2019
2.0 EcoBlue 1995 CCM 190 HP From 01/2019

The Apec DSK3119 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 300 mm outer diameter, 28 mm brake disc thickness, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 300
Brake Disc Thickness [mm] : 28
Height [mm] : 51
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 64
Number of Holes : 5
Test Mark : 90R-02C0703/2561
  • Vendor APEC
  • SKU DSK3119
  • Barcode 5028906097707
  • FORD : 2017128 2037502 5202199 5322975 DG9C1125AC DG9C1125AE
  • APEC : SDK6809
  • BLUE PRINT : ADF124355
  • BORG & BECK : BBD5411
  • BOSCH : 0 986 479 D85
  • DELPHI : BG4702C
  • Fahren : FBD6809
  • FEBI BILSTEIN : 104953
  • FTE : 9071166
  • FTE : 9081148
  • HELLA : 8DD 355 123-161
  • MEYLE : 715 521 0044/PD
  • MINTEX : MDC2662
  • NAPA : NBD5665
  • National : NBD1852
  • SKF : VKBD 80301 V2
  • TEXTAR : 92268603
  • TEXTAR : 92268605
  • TRW : DF6811
  • VALEO : 672998
