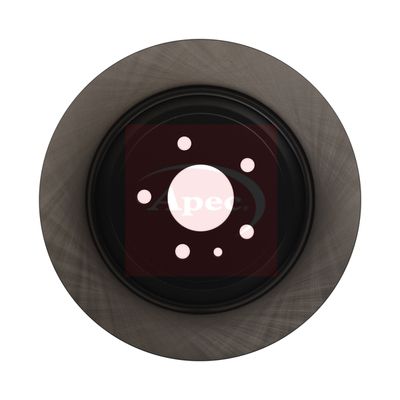

Apec DSK3122 Brake Disc - 1
Apec DSK3122 Brake Disc - 2
Apec DSK3122 Brake Disc - 1
Apec DSK3122 Brake Disc - 2
APEC

Apec DSK3122 Brake Disc

SKU: DSK3122
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£34.60 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FORD
KUGA II (DM2)
Description Cylinder Capacity Horse Power Year
2.0 TDCi 1997 CCM 140 HP 03/2013 - 09/2014
2.0 TDCi 4x4 1997 CCM 140 HP 03/2013 - 09/2014
1.5 EcoBoost 1499 CCM 150 HP 09/2014 - 06/2019
1.5 EcoBoost 4x4 1499 CCM 182 HP 09/2014 - 06/2018
2.0 TDCi 1997 CCM 150 HP 09/2014 - 06/2019
2.0 TDCi 4x4 1997 CCM 150 HP 09/2014 - 06/2019
2.0 TDCi 4x4 1997 CCM 180 HP 09/2014 - 06/2019
KUGA II VAN
Description Cylinder Capacity Horse Power Year
1.5 EcoBoost 1499 CCM 150 HP 09/2014 - 12/2019
1.5 EcoBoost 4x4 1499 CCM 182 HP 09/2014 - 12/2019
2.0 TDCi 1997 CCM 150 HP 09/2014 - 12/2019
2.0 TDCi 4x4 1997 CCM 150 HP 09/2014 - 12/2019
2.0 TDCi 4x4 1998 CCM 180 HP 09/2014 - 12/2019
1.5 EcoBoost 1499 CCM 120 HP 06/2019 - 12/2019
1.5 EcoBoost 4x4 1499 CCM 176 HP 06/2019 - 12/2019
1.5 TDCi 1499 CCM 120 HP 01/2019 - 12/2019
2.0 TDCi 1997 CCM 140 HP 06/2012 - 12/2019
MONDEO V Turnier (CF)
Description Cylinder Capacity Horse Power Year
2.0 TDCi Bi-Turbo 1998 CCM 210 HP From 03/2015

The Apec DSK3122 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 316 mm outer diameter, 11 mm brake disc thickness, and 14 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 316
Brake Disc Thickness [mm] : 11
Height [mm] : 51
Bolt Hole Circle Ø [mm] : 108
Wheel Bolt Bore Diameter [mm] : 14
Centering Diameter [mm] : 64
Number of Holes : 5
Machining : High-carbon
  • Vendor APEC
  • SKU DSK3122
  • Barcode 5028906097738
  • FORD : 2008440 5202205 DG9C2A315CD
  • BLUE PRINT : ADF124377
  • BORG & BECK : BBD5422
  • BOSCH : 0 986 479 D86
  • DELPHI : BG5311C
  • FEBI BILSTEIN : 107729
  • HELLA : 8DD 355 126-581
  • MINTEX : MDC2809C
  • National : NBD1899
  • SKF : VKBD 91350 S2
  • TEXTAR : 92292503
