Apec DSK3159 Brake Disc - 1
Apec DSK3159 Brake Disc - 1
APEC

Apec DSK3159 Brake Disc

SKU: DSK3159
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£40.00 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HYUNDAI
GRANDEUR (TG)
Description Cylinder Capacity Horse Power Year
3.3 3342 CCM 235 HP 04/2005 - 12/2010
2.2 CRDi 2188 CCM 150 HP 06/2006 - 12/2011
2.4 2359 CCM 164 HP 09/2006 - 12/2008

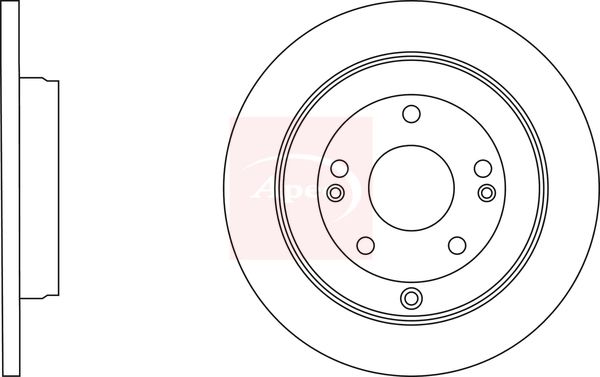

The Apec DSK3159 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 284 mm outer diameter, 10 mm brake disc thickness, and 76 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 284
Brake Disc Thickness [mm] : 10
Height [mm] : 54
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 76
Number of Holes : 5
Test Mark : 90R-02C0302/0146
  • Vendor APEC
  • SKU DSK3159
  • Barcode 5028906100872
  • HYUNDAI : 584113L000 584113L010
  • KIA : 584113L000 584113L010
  • BLUE PRINT : ADG043155
  • DELPHI : BG4767C
  • MEYLE : 37-15 523 0016
  • MINTEX : MDC2644
  • TEXTAR : 92271003
  • TRW : DF4937
