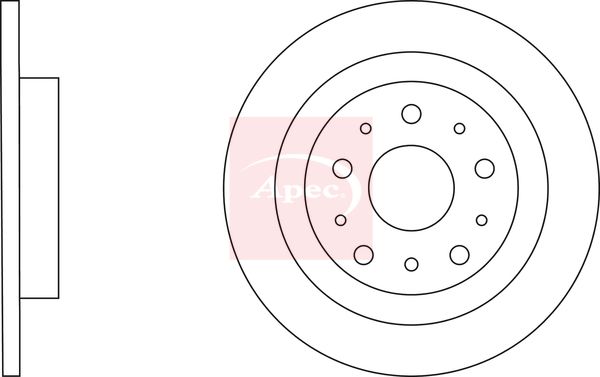

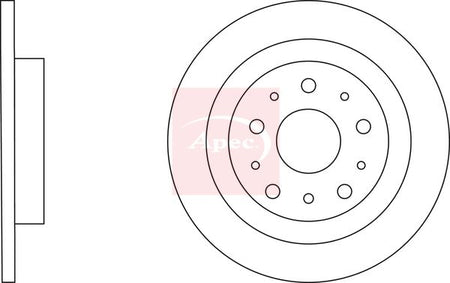

Apec DSK3174 Brake Disc - 1
Apec DSK3174 Brake Disc - 1
APEC

Apec DSK3174 Brake Disc

SKU: DSK3174
Your selected vehicle
In stock
Orders placed by 17:00 are usually dispatched the same working day
£28.51 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

FIAT
500L (351_, 352_)
Description Cylinder Capacity Horse Power Year
1.6 D Multijet (199LYE1B) 1598 CCM 120 HP From 09/2013
1.4 (199LYF1B) 1368 CCM 120 HP From 10/2013
1.4 LPG (199LYF1B) 1368 CCM 120 HP From 02/2014
TIPO Saloon (356_, 357_)
Description Cylinder Capacity Horse Power Year
1.3 D (356SXB1A, 356SXH1A, 356SXD1A) 1248 CCM 95 HP 10/2015 - 10/2020
TIPO Hatchback (356_, 357_)
Description Cylinder Capacity Horse Power Year
1.3 D (356HXH1A) 1248 CCM 95 HP From 03/2016
1.5 T4 Hybrid 1469 CCM 131 HP From 03/2022
TIPO Estate (356_, 357_)
Description Cylinder Capacity Horse Power Year
1.4 (356WXA1B) 1368 CCM 95 HP 03/2016 - 10/2020
1.6 D (356WXG1B) 1598 CCM 120 HP 03/2016 - 10/2020
1.3 D (356WXH1A) 1248 CCM 95 HP From 03/2016
1.4 (356WXF1B) 1368 CCM 120 HP 03/2016 - 10/2020
1.4 LPG (356WXF1B) 1368 CCM 120 HP 05/2016 - 10/2020
1.0 (357WXN1A) 999 CCM 101 HP From 11/2020
1.6 Multijet (357WXG1) 1598 CCM 131 HP From 11/2020
1.5 T4 Hybrid 1469 CCM 131 HP From 03/2022

The Apec DSK3174 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 264 mm outer diameter, 10 mm brake disc thickness, and 59 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 264
Brake Disc Thickness [mm] : 10
Height [mm] : 40
Bolt Hole Circle Ø [mm] : 98
Centering Diameter [mm] : 59
Number of Holes : 5
Test Mark : 90R-02C0270/0096
  • Vendor APEC
  • SKU DSK3174
  • Barcode 5028906101022
  • FIAT : 51914664 52026321 52067392 53026319
  • APEC : SDK7008
  • BLUE PRINT : ADL144348
  • BORG & BECK : BBD5366
  • BORG & BECK : BBD5483
  • BORG & BECK : BBD5562
  • BOSCH : 0 986 479 C98
  • DELPHI : BG4690C
  • DELPHI : BG4822C
  • FEBI BILSTEIN : 107714
  • FTE : 9072850
  • HELLA : 8DD 355 120-931
  • MEYLE : 215 523 0038/PD
  • MINTEX : MDC2651
  • NAPA : NBD5839
  • National : NBD2083
  • TEXTAR : 92271703
  • TRW : DF6714
  • VALEO : 197749
  • VALEO : 673133
